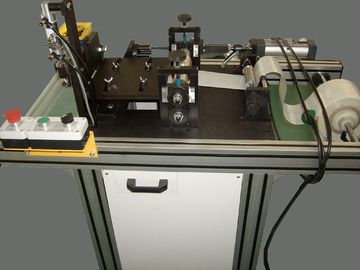

DMD Polyester Film Slot Cell Forming Machine Insulation Form For Two Pole Universal Motor

DMD Polyester Film Slot Cell Forming Machine Insulation Form For Two Pole Universal Motor

Form and cut the insulation paper for universal motor stator, cell insulation such as mixer,grinder,power tools,

Main technical data:

Armature O.D: Ф20-55mm

Length of lamination: Max 60mm

Parameter:

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Speed regulation range: 0~60Hz

Length of insulation paper: 15-60mm adjustable

Thickness of insulation paper: 0.1 mm ~ 0.5 mm

Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.

Insulation paper shape: V or edge-folding V

Efficiency: 0.5sec - 0.8sec/per slot, loading
