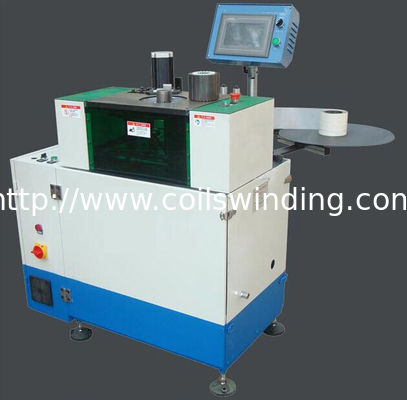

Generator Stator Insulation Paper Inserting Machine Polyester Slot Cell Inserter

Generator Stator Insulation Paper Inserting Machine Polyester Slot Cell Inserter
Generator Stator Insulation Paper Inserting Machine Polyester Slot Cell Inserter

Large Image :  Generator Stator Insulation Paper Inserting Machine Polyester Slot Cell Inserter Get Best Price

Product Details:
Place of Origin: Chinese plant motor manufacturing stator Slot insulation
Brand Name: Wind Automation
Model Number: Stator insulation paper inserting machine
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Payment Terms: Insert insulation paper polyester to stator's slot to insulate it with winding.
Supply Ability: generator stator slot insulation paper insertion
Detailed Product Description

Generator Stator Insulation Paper Inserting Machine Polyester Slot Cell Inserter Advantages:

0.5 to 0.7 second per slot,

save labor cost comparing to paper forming and manual inserting production process

the edge folding length and insulation paper length can be adjusted

Usually the edge folding length is 2.5mm to 3mm



Parameter:

Laminated thickness of stator: 10mm-100mm

Max outer diameter of stator: Φ 200mm
Diameter of stator: Φ 15mm- Φ 90mm
Height of edge folded: 2.5mm-5mm
Max insulation paper's thickness: 0.3mm
Feeding length: 12mm-45mm
Tack time: 0.5 to 0.7s/slot
Input: 380V/50Hz
Power: 0.75KW
Machine productivity: around 1500pcs/8hours
Dimension: 950mm × 600mm × 1000mm

Weight: ≈ 150kg



Photo:

Generator Stator Insulation Paper Inserting Machine Polyester Slot Cell Inserter 0



Generator Stator Insulation Paper Inserting Machine Polyester Slot Cell Inserter 1



Video:

https://vimeo.com/125464089
