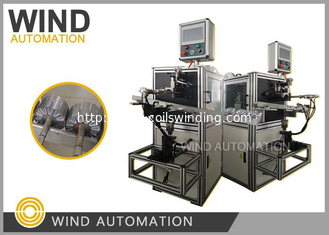

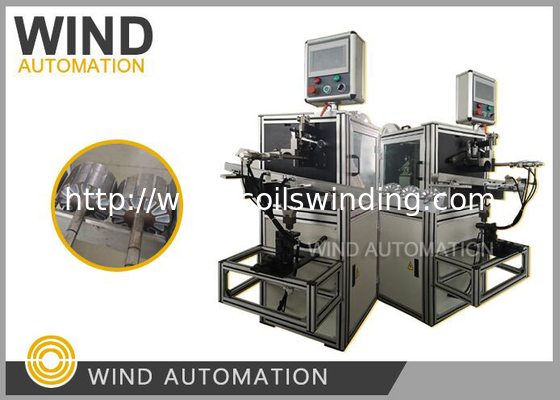

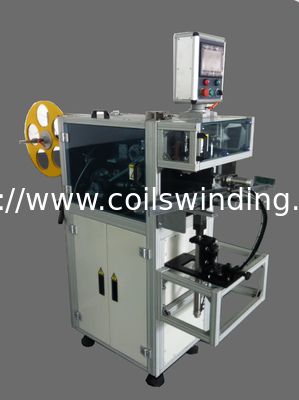

Armature Slot Cell Liner Insulation Paper Polyester Inserting Machine For Excited DC Motor

This  machine WIND-IP-1 form, cut and insert the insulation paper polyester to armature's slot, i

n order to insulate the armature core and winding, the process is forming, cutting, inserting, indexing to next slot,

forming,cuting,inserting, indexing, repeat the action untile the setted slots are finished, o

ne armature is well inserted,

machine automatially place the next aramture and repeat the job.

Armature O.D: Ф20-55mm

Length of lamination: Max 60mm

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Speed regulation range: 0~60Hz

Length of insulation paper: 15-60mm adjustable

Thickness of insulation paper: 0.1 mm ~ 0.5 mm

Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.

Insulation paper shape: V or edge-folding V

Efficiency: 0.5sec - 0.8sec/per slot, loading,clamp, feeding paper,unloading

Air source: air pressure: 4~6kg/cm2

Machine power: 1.0KW

Voltage: AC220V±10%, 50/60Hz

Weight: about 400Kg

Dimension : L910 mm x 880 mm x 1300mm3
