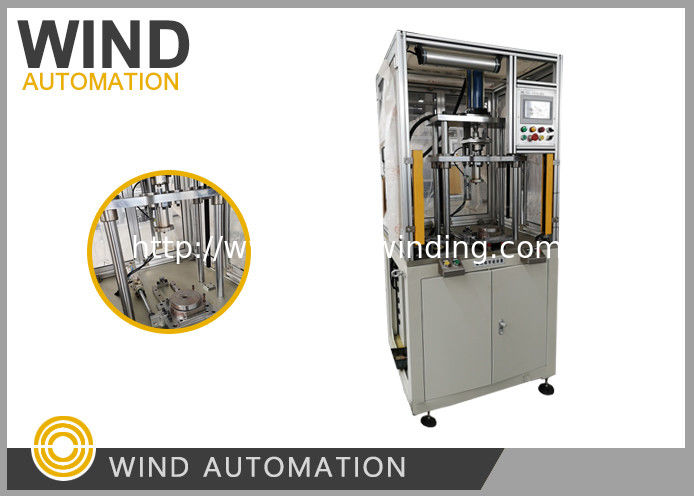

Hydraulic Presser For Commutator Placement Shaft Insertion WIND-CP-H

China Hydraulic Presser For Commutator Placement Shaft Insertion WIND-CP-H supplier

Large Image :  Hydraulic Presser For Commutator Placement Shaft Insertion WIND-CP-H

Product Details:

Place of Origin: Mature machine for producing Electric motor
Brand Name: China equipment
Certification: CE
Model Number: Hydraulic press

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Detailed Product Description
Press Type: Hydraulic Not Penumatic Motor Press: Motor Building, Press Commutator To Shaft

Starter armature commutator press machine


Question and Answer


We purchased a WIND-CP-H commutator press (S/N: WIND20181123W82)

with one set of tooling from Shanghai Wind back in 2018 and I would like to purchase one set of tooling for another part.

tooling for armature part number drawings shows the armature with bearings, but the bearings will be installed after the commutator press.

As shown in connection diagramone slot on the commutator will need to be aligned with one slot in the lamination stack.



You metioned one slot on the commutator will need to be aligned with one slot in the lamination stack,

that's the machine WIND-CP-H with its tooling can obtain suitable press quality for winding process,


Supply scope

No. Item Qty
1 Hydraulic press body 1set
2 Hydraulic system 1set
3 Electric control system 1set
4 Spare parts(Including sealing rings, connectors) 1set


Armature Commutator Hydraulic Press Machine Motor Parts Placement Device


2. Structure

Press is two column structure, including steel structure, hydraulic cylinders, hydraulic system, power system and electric control system, which work together through pipes and electric control system.


  • Steel structure

It is welded by steel plate, and the deformation stress is removed by vibration. Hydraulic system pump station is post-positioned, and hydraulic assembly is external installed, "ingenious design, reasonable appearance layout, easy maintenance." The hydraulic cylinder is fixed in the hole of top, locked with a screw and capped tightly.


  • Cylinder

It has one piston cylinder, head flange support, which is fixed in the installation hole by nuts. Cylinder body and piston rod are forged by 45 #, and piston rod is chrome plated (the surface is not easy to wear).


4.Hydraulic system

Hydraulic system includes cylinder, oil pump, control valves, pipes, oil box and other control accessories, which drive cylinder by electric control system, to drive slide working and finish its process.

1. Integration valve block system

It is patent by our own company, 45# forging with many process of steel treatment, strong anti-pollution ability, reliable performance, small impact, flexible control mode, easy integration and maintenance.

2. Control Valves

Multi-valve centralized control, using domestic high-quality brand hydraulic valve components.

3. Pipe lines

High-pressure soft pipelines with flange connection, reliable sealing, and the anti-seismic pipe clamp is reasonably arranged.


5. Safety protection

1. Protection device for hydraulic system and motor

1.1 hydraulic system is equipped with overflow valve, which can prevent over pressure and protect mould and products.

1.2 Motor is equipped with fuse and air switches to prevent overload and short circuit.

1.3 Safety signs (safety operation warning signs) are affixed to the visible parts.


2. Protection device for electric system

2.1 Short-circuit protection of main circuit is realized directly by automatic air circuit breaker, and short-circuit protection of control circuit is realized by fuse.

2.2 The connection and disconnection of the cables are achieved through contactors and relays, so the machine can get low voltage protection of the line.

2.3 All electrical devices of the machine have safe and reliable grounding devices
