Motor Armature Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Motor Armature Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine

China Motor Armature  Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine supplier
Motor Armature  Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine supplier Motor Armature  Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine supplier Motor Armature  Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine supplier Motor Armature  Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine supplier Motor Armature  Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine supplier Motor Armature  Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine supplier

Large Image :  Motor Armature Paper Inserter Slot Liner Insulate Core And Winding Coils Insulation Machine

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: WIND-IP-1 slot insulation ,stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Supply Ability: in order to insulate the armature core and winding
Detailed Product Description
Indexing: Insert Insulation Paper To Slot One By One Insert: Insert Pvc Insulation Paperto Armature Slot Liner

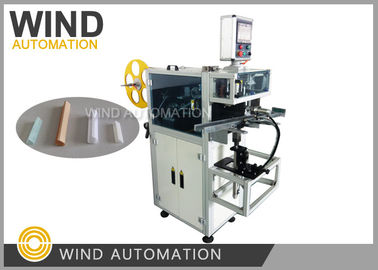

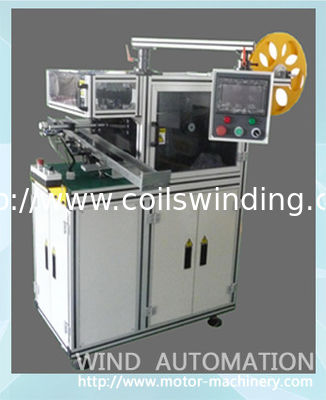

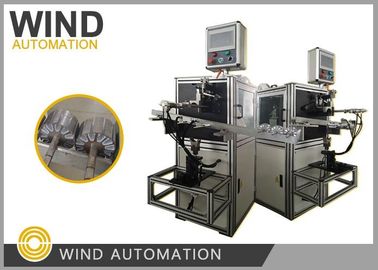

Slot cell paper inserting machine WIND-IP-1 Advantages:

Japan brand PLC and servo motor ensure the good performance

High efficiency,0.5 to 0.8 second per slot

The machine form, cut and insert the insulation paper polyester to armature's slot,

the process is forming, cutting, inserting, indexing to next slot, repeat the action until the setted slots are finished,

one armature is well inserted,

machine automatially place the next armature and repeat the job.
