Slotted Type Commutator ArmatureRiser Commutator Armature Winding Machine Winder
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Armature Manufacturing: | Slotted Type Commutator Armature Winding Riser Not Hook Type | Armature Winder: | Wind Treadmills Blades And Measures |
|---|---|---|---|
| São Colectores Para: | Rebarbadeira,aspiradores,martelos. 24 Segmentos |
Slotted type with or without Riser commutator automatic armature winding machine
WIND-ST-TD2B Advantages:
1. For armature with thin copper wire,
Machine had good feedback of winding a 0.25mm wire diameter armature
2. For armature with thick wire, machine WIND-ST-TD2B can handle AWG16 (1.35mm) armature
3. No need to work with special designated commutator slotting machine
4. 98% yield rate above assured when the slot commutator quality is good
5. Till now it is the best machine in China for winding slot type armature
| Armature winding machine appliance | |
| Max wire diameter handled | 1.35mm (about AWG16 )Max wire winding machine handled |
Automatic armature winding machine for Slotted type commutator armature

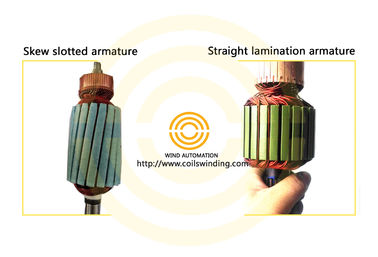

Straight stack armature winding, skewed armature winding
Automatic armture winder
Automatic armature winding machine China supplier
Armature winding machine tooling
Fully automatic armture winding machine Video:
Main data:
Wire diameter: 0.20~1.2mm
Armature diameter range:20~90mm
Armature stack length:10~130mm
Commutator diameter:8~60mm
Armature slot number:Odd, oven slot
Turns no.:0~99999
Flier fork speed:0~2000RPM
Indexing speed:0~2500RPM
Total power:4.5KW
Operation method:Step, Auto, JOG
Power source:AC380V 50/60Hz
Air source:5~7KG/cm2
Weight:850KGS
Dimension:1530mm x 1280 mm x 1650mm
Main configuration:
PLC: MITSUBISHI
Servo control system: Delta or MITSUBISHI
Touch screen: MCGS7062KS
Pneumatic system: AIRTAC
Main electrical components:Korea and Japan
Tension :Hysteresis tension
Linear guide way: HIWIN
Safety door and feeding device: Pneumatic

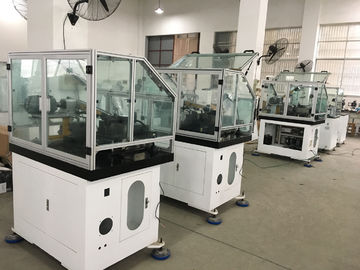

WIND-ST-TD2B winding machine is to do winding for the armature with riser type commutator. It has double flyer to make the winding and with auto wire cutting, clamping structure, assisting wire inserting way to upgrade the winding speed.
| Item | Name | Type | Quantity |
| 1 | Spindle rotate belt | 165L | 1pc |
| 2 | Indexing rotate belt | 182XL | 1pc |
| 3 | Belt | 102XL | 2pcs |
| 4 | Fuse | RT18-32 2A | 2pcs |
| 5 | Fuse | RT18-32 10A | 2pcs |
| 6 | Ceramics wire wheel | ∮6 | 2pcs |
| 7 | Sensor | AL-13D-02 | 1pc |
| 8 | Sensor | AL-11RL-02 | 1pc |
| 9 | V bearing | 1pc | |
| 10 | FDS016 | 1pc | |
| 11 | Pail for wire | 1pc | |
| Tool | |||
| Item | Name | Type | Quantity |
| 1 | Innder hexagon spanner | 8pcs | 1set |
| 2 | Open spanner | 13-16mm | 1pc |
| 3 | Slotted screw | 1.5'' | 1pc |
| 4 | Cross screw | 4'' | 1pc |
| 5 | Wrench | 8pcs | 1set |
| 6 | Tweezers | stainless steel | 1pc |
| 7 | Diagonal Pliers | 1pc | |
| 1pc |
