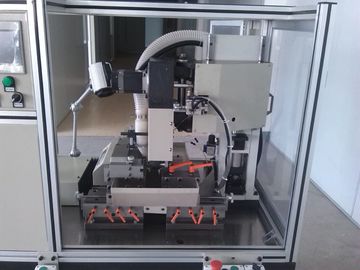

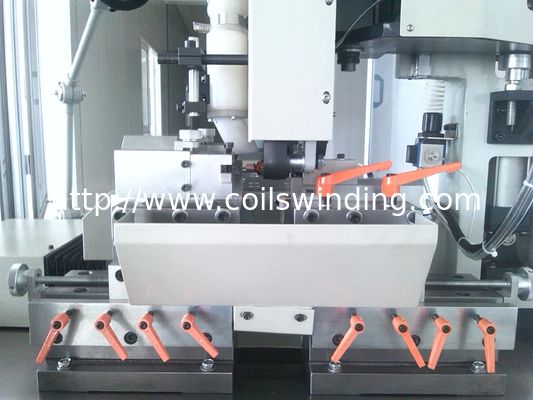

Commutator face Precise turning lathing machine  WIND-3A-PL Purpose:

Turning and milling the surface of commutator to let it polish and shining, commutator turning and burr remover can help the commutator work well with carbon brush.

Parameter data:

     Commutator roundness:< 0.0035mm

      (Depends on user's commutator material, armature shaft quality and bearing quality)

Roughness: ≤Ra 0.4(depends on customer’s armature quality)

Armature OD: Ф20~Ф100mm (commutator side < 100mm)

Shaft length: 32~250mm

Shaft OD: Ф3~Ф25mm

Commutator OD: Ф4.3~Ф50mm

Z direction cutter feeding speed: settable on touch screen, stepless adjustable

Z direction cutter returning speed: set on program

X direction cutter feeding speed: settable on touch screen, stepless adjustable

X direction cutter returning speed: set on program

Z direction cutting length: settable on touch screen, Max. could set 4times different

cutting length(Max 30mm)

Z direction travelling: Max 80mm

Production efficiency: whole cycle≤12sec/pc(twice cutting)

Air pressure: 4~6kg/cm2

Fixture: diamond V shape journal

Total power: 2.5KW

Machine power: 50/60Hz AC220V±10%(single phase)

Burring removing machine power: 50/60Hz AC230V±10%(single phase)

Vacuum cleaner power: 1.5KW,50/60Hz AC380V±10%(three phase)

Weight: about 1,100Kg

Machine dimension: 1,300mm x 900 mm x 1600mm3





Configuration of the commutator turning machine

1.Z Axis Mitsubishi Servo system (Turning length)

X Axis Mitsubishi Servo system (Turning depth)

Y Axis Mitsubishi Servo system (Press Arm)



2.Touch screen: Mitsubishi

3.Taiwan TBI Ball screw rod

4.Taiwan Airtac cylinder



HS Code:84581100
