Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type

China Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type supplier
Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type supplier Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type supplier Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type supplier Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type supplier Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type supplier

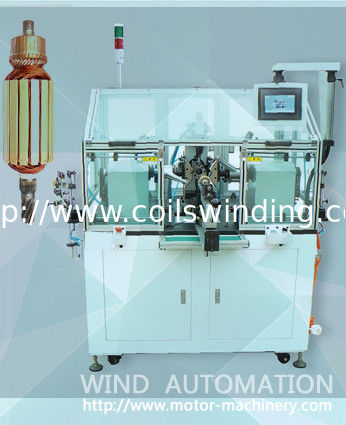

Large Image :  Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type

Product Details:

Place of Origin: Chinese machine for producing electric motor armature
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: WIND-ST-TD2B shaft insertion, stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Delivery Time: 25 working days
Detailed Product Description
Armature Type: DC Motor Armature Commutator Type: Rise Slotted Less Than Hook Commutator

 Blades And Measures Motor Armature Winding Machine Advantages:

1. Slot type armature with thin, thick wire machine can handle,

   Machine had good feedback of winding a 0.25mm wire diameter armature

2. Have good adaption for slot type commutator with groove,

   No need to work with special designated slot machine

3. Got good feedback in wide application from customers

4. 98% yield rate above assured when the slot commutator quality is good

5. Till now it is the best machine in China for winding slot type armature



Video:

https://youtu.be/B3qWEeS4l2M

 https://vimeo.com/148309838



Main data:

Wire diameter: 0.20~1.2mm

Armature diameter range:20~90mm

Armature stack length:10~130mm

Commutator diameter:8~60mm

Armature slot number:Odd, oven slot

Turns no.:0~99999

Flier fork speed:0~2000RPM

Indexing speed:0~2500RPM

Total power:4.5KW

Operation method:Step, Auto, JOG

Power source:AC380V 50/60Hz

Air source:5~7KG/cm2

Weight:850KGS

Dimension:1530mm x 1280 mm x 1650mm



Main configuration:

PLC: MITSUBISHI

Servo control system: PANSONIC or MITSUBISHI

Touch screen: MCGS7062KS

Pneumatic system: AIRTAC

Main electrical components:Korea and Japan

Tension :Hysteresis tension

Linear guide way: HIWIN

Safety door and feeding device:  Pneumatic

Contact:EmilyGao

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
