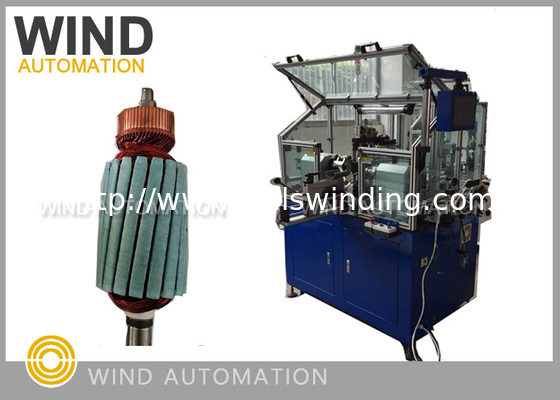

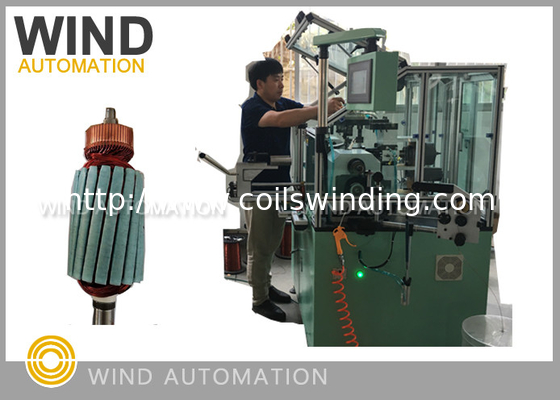

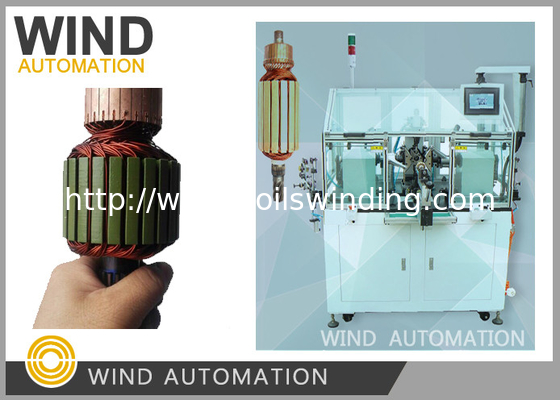

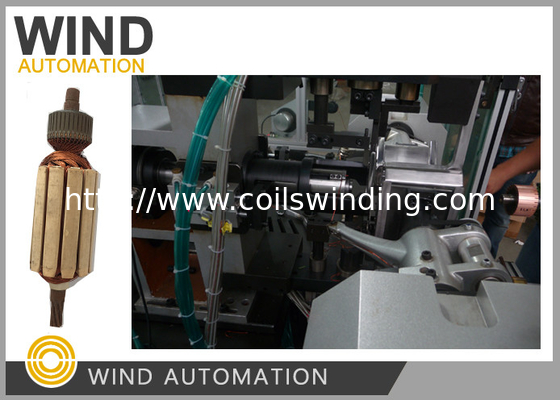

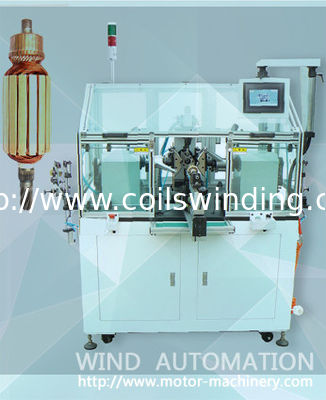

Blades And Measures Motor Armature Winding Machine For Slotted Rise Commutator Not Hook Type

 Blades And Measures Motor Armature Winding Machine Advantages:

1. Slot type armature with thin, thick wire machine can handle,

   Machine had good feedback of winding a 0.25mm wire diameter armature

2. Have good adaption for slot type commutator with groove,

   No need to work with special designated slot machine

3. Got good feedback in wide application from customers

4. 98% yield rate above assured when the slot commutator quality is good

5. Till now it is the best machine in China for winding slot type armature

Video:

​https://youtu.be/B3qWEeS4l2M

 https://vimeo.com/148309838

Main data:

Wire diameter: 0.20~1.2mm

Armature diameter range:20~90mm

Armature stack length:10~130mm

Commutator diameter:8~60mm

Armature slot number:Odd, oven slot

Turns no.:0~99999

Flier fork speed:0~2000RPM

Indexing speed:0~2500RPM

Total power:4.5KW

Operation method:Step, Auto, JOG

Power source:AC380V 50/60Hz

Air source:5~7KG/cm2

Weight:850KGS

Dimension:1530mm x 1280 mm x 1650mm

Main configuration:

PLC: MITSUBISHI

Servo control system: PANSONIC or MITSUBISHI

Touch screen: MCGS7062KS

Pneumatic system: AIRTAC

Main electrical components:Korea and Japan

Tension :Hysteresis tension

Linear guide way: HIWIN

Safety door and feeding device:  Pneumatic
