Double Station Armature Electrical Motor Winding Machine / Small Rotor Winder for special thin Wire

: Large Image : Double Station Armature Electrical Motor Winding Machine / Small Rotor Winder for special thin Wire

Product Details:

Place of Origin:	Chinese machine for producing electric motor laminas armature
Brand Name:	Wind Automation
Certification:	Custom made machine for many developed and developing countries
Model Number:	shaft insertion, stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD
Packaging Details:	Polywood case
Delivery Time:	25 working days
Supply Ability:	laminas São colectores para rebarbadeira,aspiradores,martelos

Contact Now

Detailed Product Description

Wire Gauge:	Below 0.27mm	Armature Type:	DC Motor Armature

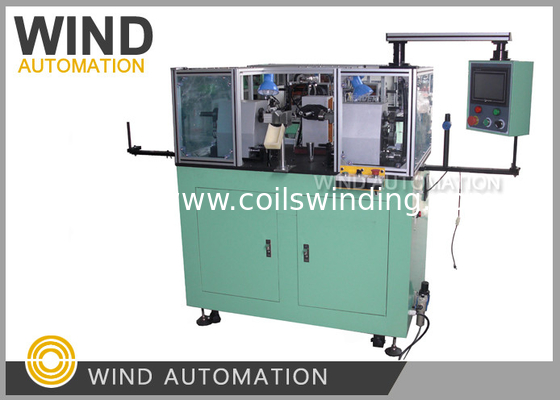

Double Station Armature Electrical Motor Winding Machine / Small Rotor Winder

Quick Detail:

1. This armature Winding Machinemachine is suitable for small armature with 3-7 slots.

2. The coil winder has two working stations so that it can wind 2 armatures at same time.

3, Machine is controlled by PLC.

Description:

This kind of Two Station Armature Winding Machine is used for the small armature with 3~5 slots. There are 2 working stations, 2 armature can be winded at same time. Machine is controlled by PLC.

Technical parameter:

Machine main technical parameter
Power source	220VAC ±10% / 50Hz
Main motor power	≤1.5kW
Max rotation speed of main spindle	3000rpm
No. of station	2 stations
Wire diameter range	0.07mm～0.27mm
Armature slots range	3 slots ,5 slots or 7slots
Armature O.D. range	Φ30mm～Φ43mm
Stack length range	15mm～25mm
Armature spindle range	Φ5.5mm
Air source	0.4Mpa~0.6Mpa
Working temperature	45℃
Store temperature	50℃
Working humidity	<65%
Store humidity	<45%

Information needed for Armature Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Rotor lamination drawing

2. Rotor assemble drawing

3. Rotor stack drawing

4. Rotor winding diagram drawing: with rotor wire diameter and turn number

5. Commutator drawing

6. Required productivity

7. Other technical requirement

If possible, it will be better if customer can send us samples.
