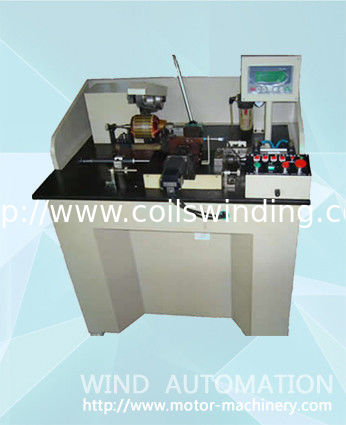

Hook Type Commutator Turning Machine

Hook Type Commutator Turning Machine

This machine adopts servo control for cutter moving and turning. Mechanical parts are imported, thus the machine is high efficiency and strong reliability.

(1) Specification

Armature OD 20mm~90mm
Commutator OD 8mm~42mm
Shaft length 50~250mm
Stack height 10~100mm
Single side turning depth Max 0.12mm
Bar-bar roundness ≤0.0030mm
Surface roughness ≤0.0025mm
Air source pressure 0.4MPa~0.7Mpa
Power supply AC220V+/-5%
Weight Around 1100KG
Dimension 1130mm x 900mm x1590mm

Suitable for electrical tool, household appliances , vehicle, motorcycle starting engine, mini-engine and so on.

1. Machine should be installed in a place, with clean air and moderate moisture.
2. Servo motor should be far away from oil, fluid etc and knocks by hard thing.
3. Key parts of machine's mainframe is consisted of high precision dust-proof bearing and it needn't do maintenance on general condition. But it requests replacement on condition that the bearing couldn't rotate smoothly or in jam.
4. Inject 20# machinery oil to oil tank regularly.
5. Inject lubricant oil to linear guide rail regularly.
6. Tighten the screws and bolts regularly.
7. Avoid fierce knocking and pressing of touching display. Avoid fierce rotation of its box.
8. Keep the touching display and its box clean and keep it away from heavy dust, strong sunshine and corrosive material.
9. Keep machine away from high radiation equipment such as transformer.


Turning and milling the surface of commutator to let it polish,smooth and shining,

commutator turning and burr remover can help the commutator work well with carbon brush.



Control: PLC System
Belt press time: 0.1s
Cutting time: programmable
Cutting speed: pneumatic adjustable
Speed frequency: 0-60Hz
Air pressure: 0.5-0.7Mpa
Armature shaft diameter: 3-16mm
Shaft length: 50-350mm
Cutter linear speed: 50-1000m/Min
Weight each cutting: 0.02-0.2mm
Surface roughness: 0.25 micron for commutator

Max concentricity: 0.005mm
Max cutting length: 100mm
Weight: about 350kgs
Dimensions: 930 (L)x630(W)x900(H)mm

HS Code:84581100
