Skew Slot Armature Automatic Double Flyer Winding Machine Lap Winder

China Skew Slot Armature Automatic Double Flyer Winding Machine Lap Winder supplier
Skew Slot Armature Automatic Double Flyer Winding Machine Lap Winder supplier Skew Slot Armature Automatic Double Flyer Winding Machine Lap Winder supplier

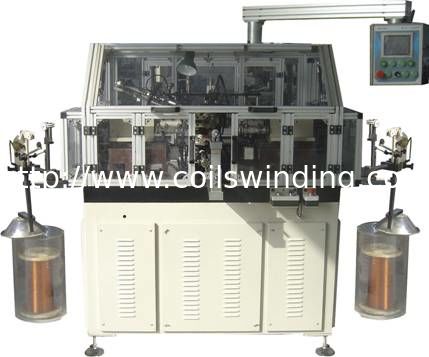

Large Image :  Skew Slot Armature Automatic Double Flyer Winding Machine Lap Winder

Product Details:

Place of Origin: Chinese machine Japanese quality
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Detailed Product Description

Skew Slot Armature Automatic Double Flyer Winding Machine Lap Winder

Advantages:

With Japanese brand PLC control system and servo system,

this machine is the best sold in continuous 6 years!



Main parameter:

Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000



Application:

Wind the wire of armature for micro motor such as series motor,

house hold appliances motor power tools,mixer,blender,car motor etc.



Video:

https://vimeo.com/123798436  is the demo for the winding process,

this machine is popular in many countries since its first version winding was born in  the year1998

for the customers who produce commutator armature!



Contact:EmilyGao

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com

Automatic two flyer fork armature winding machine WIND-STR 双飞叉转子绕线机 from EmilyGao of coils winding supply on Vimeo.
