Semi Auto Dynamic Armature Balancing Machine With Measuring And Remove Weight Device

Semi Auto Dynamic Armature Balancing Machine With Measuring And Remove Weight Device
Semi Auto Dynamic Armature Balancing Machine With Measuring And Remove Weight Device

Large Image :  Semi Auto Dynamic Armature Balancing Machine With Measuring And Remove Weight Device Get Best Price

Product Details:
Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: stator winding, armature winding, welding
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Detailed Product Description

Semi Auto Dynamic Armature Balancing Machine With Measuring And Remove Weight Device

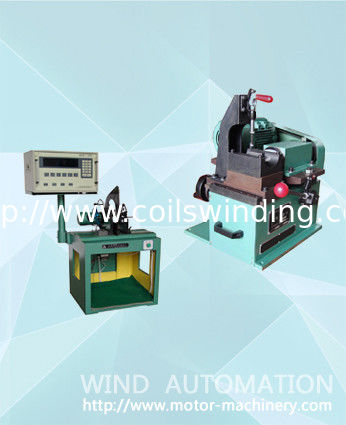

Measuring machine(the one with screen) measure the inbalancing value and show,

milling machine remove the weight.



Main Data:

Max balanced parts weight: 1.6KGS

Max Diameter:200mm

Holder distance: 40 ~200mm

Shaft range: 2~25mm

Ring Max OD:20~85mm

Balancing speed: 800~5000rpm

Power: 0.12KW

Imbalancing value:0.3g.mm/kg



Working video:

https://vimeo.com/140794421



Contact:EmilyGao

Email:emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: www.motor-machinery.com;www.coilswinding.com
