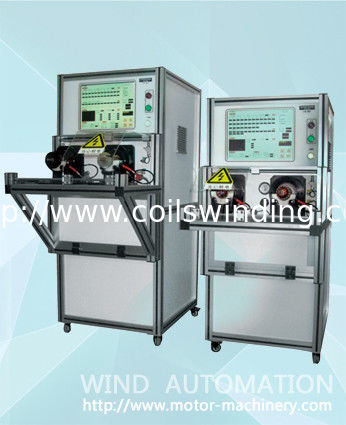

Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer

Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer
Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer

Large Image :  Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer Get Best Price

Product Details:
Place of Origin: Armature analyser China supplier
Brand Name: Wind Automation
Model Number: WIND-ATS-100
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Delivery Time: HS Code:9030390000
Detailed Product Description
Armature Type: Universal Motor Armature Such As Power Tool Mixer Driller Armature Slot Type: Below 36 Slots Power Tool Mixer Vacuum Clearner

Double station armature testing panel rotor armature tester analyser

test the bar-bar resistance, welding resistance, dielectric strength(Hi-pot),

insulation resistance and turn-turn insulation.

The loading and testing mode could be shifted by sliding the safety cover. The testing panel starts testing once the safety cover being slid upon the working station.


Test Item:

1.Dielectric strength (Hi-Power,Hi-pot) test, bewteen armature and coil

2. Insulation resistance,between armature and coil

3. Turn to turn insulation, between coil and coil

4. Cold resistance,between commutator segment and segment

5. Welding resistance, between commutator segment and coil welding point



Plant Testing Machine Before delivery:

Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer 0







Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer 1





Double Station Armature Testing Panel Rotor Armature Tester Analyser China Manufacturer 2



Video One operator handle three machines Turning fusing testing machine in motor making user plant
