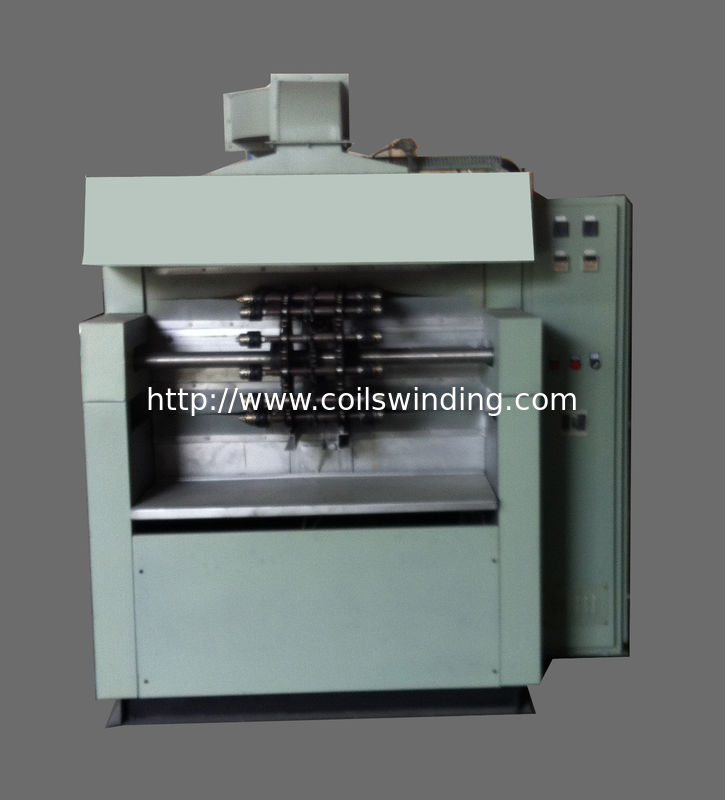

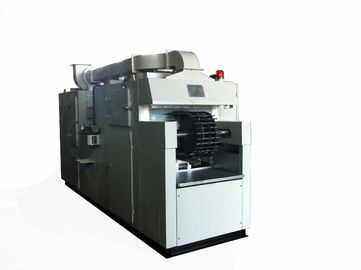

Armature Automatic Varnish Heat Treatment Oven Trickle Impregnation Machie
Operator loads armatures (video demo) on machine,
machine will move automatically, run the process
loading, preheating, air cooling , trickling (2 points to do trickling on armature by its both end at winding),
flat flowing , colloidizing & postcuring, air cooling.
Simple varnish collection trays do the remaining varnish collecting.
Working position: 200*2
Position pitch: 63
Heating time: ≤45 min
Tunnel working temperature: 0—160 ℃
Pitch time: 0-10min adjustable
Power consumption: 36 KW
Weight:Around 4.2 Ton
Production capability: 1200pcs/8 hours
