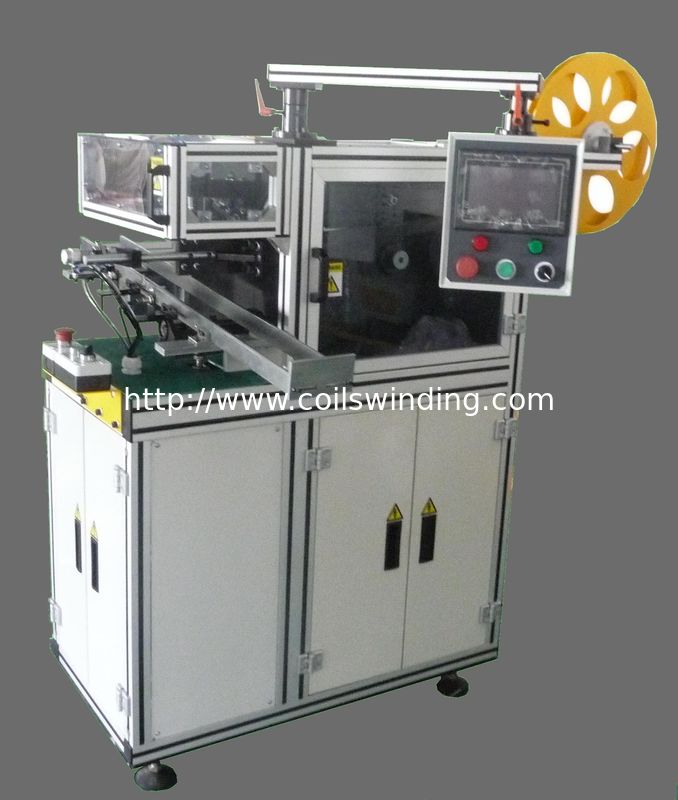

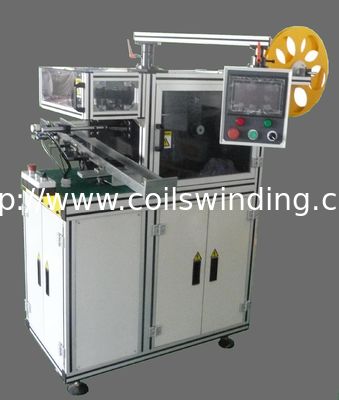

Household Appliance Motor Armature Slot Wedge Fillers Insulation Wedge Placement Machine

Household Appliance Motor Armature Slot Wedge Fillers Insulation Wedge Placement Machine Advantages:

1. Continue operation for 3 shifts, automatically loading and unloading armatures

2. Could store production parameter for 100nos armatures

3.Display production data, including shift output, consuming time,

4.During machine running, the machine will alarm once anything abnormal occurs

5. Three operation modes could be switched: JOG, automatic and stepping

6.Easy to adjust and operate.

Main components
PLC: MITSUBISHI or Omron programmable controller
Relay: OMRON
Proximity switch: OMRON
MITSUBISHI or Panasonic frequency converter
Touch screen: WENVIEW PLD(7")
Air switch: MITSUBISHI
Power source: Mingwei
Switch: SCHNEIDER
Brake: MIKIPULLEY (Japan brand)
Ball bearing: UBC (USA brand)
Linear guide: ABBA (Taiwan brand) or CPC or Shangying
Cylinder: SMC
Air source treatment elements or electromagnetic valve: SMC

Technical data
Armature O. D: 20-55mm
Length of lamination: Max 60mm
Shaft length: 32~250mm
Shaft O. D: 6~20mm
Slot number: 8-24 slots
Commutator O. D: 16~50mm
Length of wedge: 15-60mm
Speed regulation range: 0~60Hz
Wedge shape: Flat, U or R shape
Thickness of wedge: 0.2 mm ~ 2.0 mm
Efficiency: 0.5sec - 0.8sec/per slot, loading-Clamp Feeding-unloading (total 8~10sec/cycle for 12 slots armature)
Air source: Air pressure: 4~6kg/cm2
Machine power: 1.0KW
Tooling/fixture: Fast changing integrity forming wheel structure
Voltage: AC220V± 10%, 50/60Hz
Weight: About 400Kg
Dimension: (L)910 x (W)880 x (H)1300mm

Place insert the insulation wedge (showed as below) to armature, insulate the armature winding and stacks,

also fixten the armature windings.After winding, use thick wedge normally 0.5mm while insulaiton polyester is usually 0.25mm to insert to armature, tight the armature and strength the winding and reduce motor noise​.

Also named as automotive motor armature rotor insulation wedge inserting machine,

widely used for power tool,vacuum cleaner,commutator motor rotor,  rotor top wedge inserting
