Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type

Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type
Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type

Large Image :  Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type Get Best Price

Product Details:
Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: stator winding, armature winding, welding
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Detailed Product Description
Armature Balancing Weights Machine: Adding Weight Type Automatic Dynamic Armature Balancing Automatic Adding Weight Balancing: Measure And Stop At Right Place To Add The Weight
Balancing Machine Application: Suitable For Small Dc Motor Armature With Low Rpm

Armature Automatic dynamic armature balancing adding weight type Operation process:

Machine measure armature’s imbalance automatically,display the imbalance of each side on touch screen,

Stop at adding weight point (left) automatically, finish adding manually,

change to the next adding weight point (right),

finish adding manually, test again, and complete balancing adjustment.

Take out well-balanced armature,

view video https://vimeo.com/128953082



Balancing machine adding weight type application Suitable for low speed rpm small DC motor armatures
Balancing Features No opearation skill required,easy to operate


Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type 0

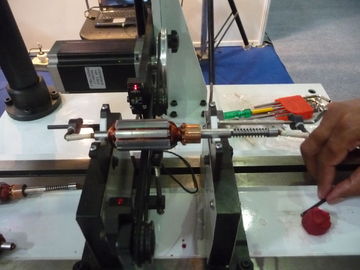

Rotor Armature balancing machine  adding weight type China supplier

Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type 1

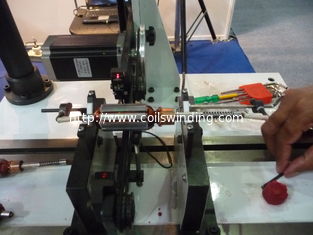

Automatic adding weight type armature balancing machine

Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type 2

Adding weight armature rotor balancing machine

Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type 3

Dynamtic armature balancing machine

Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type 4

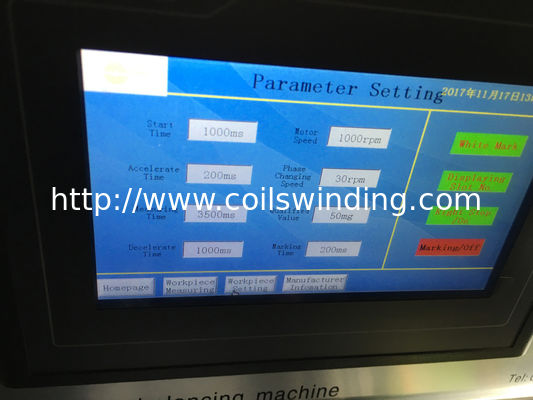

Adding weight armature balancing machine WIND-DAB-5Z touch screen

Balance Weights For Armature Automatic Dynamic Armature Balancing Adding Weight Type 5

Adding weight rotor balancing machine





Machine’s technical parameter:

1. Balancing rotation speed: 900~5000r/min (resolution: 10 turns)

2. Imbalancing value:0.3g.mm/kg

3. Weight of workpiece: 0.1-1.6kg

4. OD of workpiece: ≤∮200mm

5. Shaft O.D of workpiece: ∮2.17-∮25mm

6. Lamination of workpiece: 10—200mm

7. Driving mode: belt

Advantage:

1.No need to mark in armature (such as reflective sheet, black mark and so on)

2. Imbalance point positioning automatically

3. Low operation skill requirement to staff

4. Reduce the complexity of the machine operation
