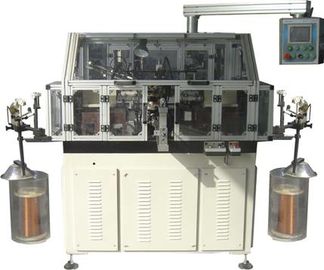

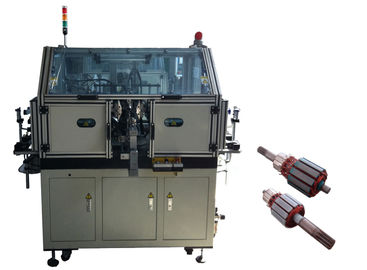

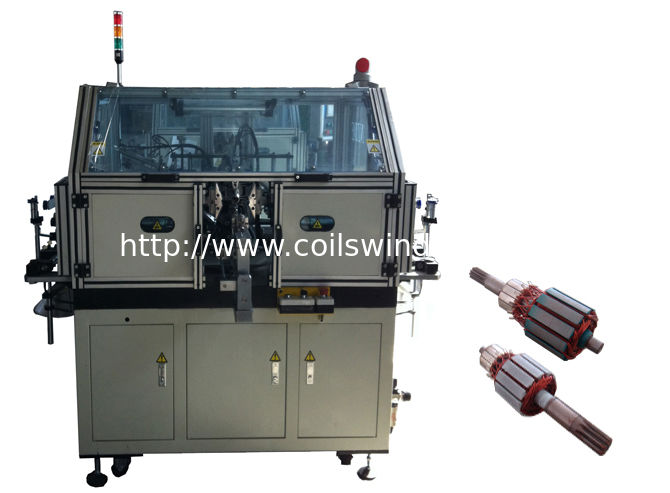

Drill Grinder Motor Armature Winder With Japanese Servo System

Drill Grinder Motor Armature Winder With Japanese Servo System Main Configuration:

Japan Mitsubishi FX3U PLC control
Japan Panasonic servo motor control system
5.7’’ colorful touch screen system
Airtec Cylinder from Taiwan
SMC Electromagnetical Valve from Taiwan
SMC Air source handling part from Taiwan
Aluminium Alloy cover, imported organic grass

Much stronger structure.
Stable, sway-proof fixture and wire protection system, tooling change time is around 5 minutes.
Cylinder automatically convey armature.

Main parameter:

Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000
