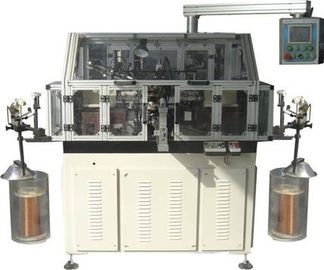

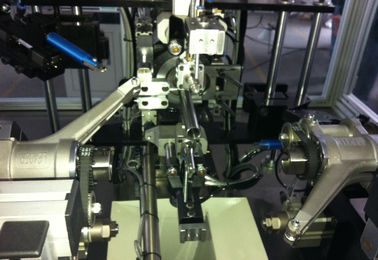

Automatic DC Armature Winding Machine Winder For Straight Line And Skew Line Armature

Armature Winding Machine Parameter:

Wire diameter range: 0.16~1.2 mm ( special made machine for thin wire armature also available)
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000

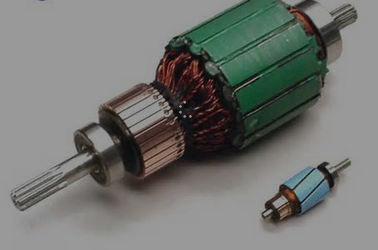

Wind the coils of armature for micro motor such as series motor, power tools,mixer,blender,car motor etc. With Japanese brand PLC control system and servo system
