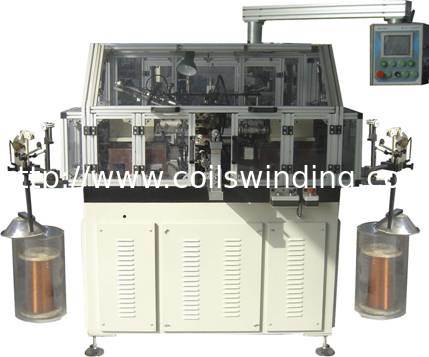

Automatic lap winding machine winder

China Automatic lap winding machine winder supplier
Automatic lap winding machine winder supplier Automatic lap winding machine winder supplier

Large Image :  Automatic lap winding machine winder

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: lap winding machine
Model Number: stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Contact Now
Detailed Product Description

Wind the wire of armature for micro motor such as series motor, power tools,mixer,blender,car motor etc.

With Japanese brand PLC control system and servo system


Main parameter:

Wire diameter range: 0.16~1.2 mm (We have special made machine for thin wire armature)
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000
