Wind the wire of armature for micro motor such as series motor, power tools,mixer,blender,car motor etc.

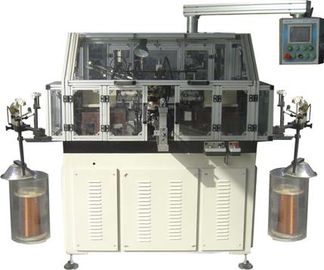

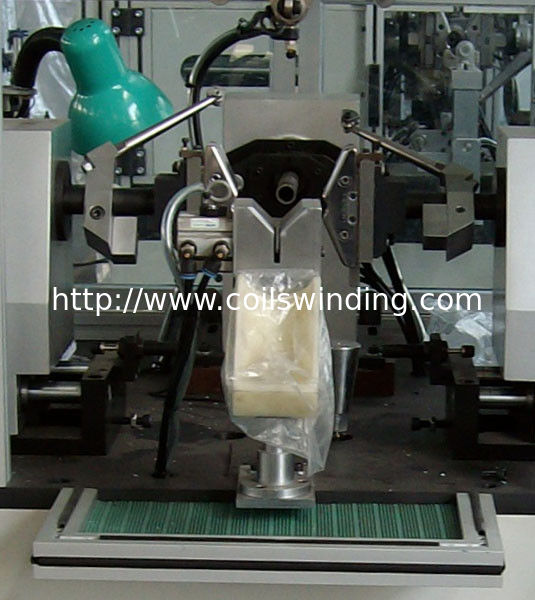

With Japanese brand PLC control system and servo system Automatic Lap Winding Machine Winder
Main parameter:
Wire diameter range: 0.16~1.2 mm (We have special made machine for thin wire armature)
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1
Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm
HS code: 8479811000
