Armature Dynamic Balancing Adding Weight

China Armature Dynamic Balancing Adding Weight supplier

Large Image :  Armature Dynamic Balancing Adding Weight

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Detailed Product Description

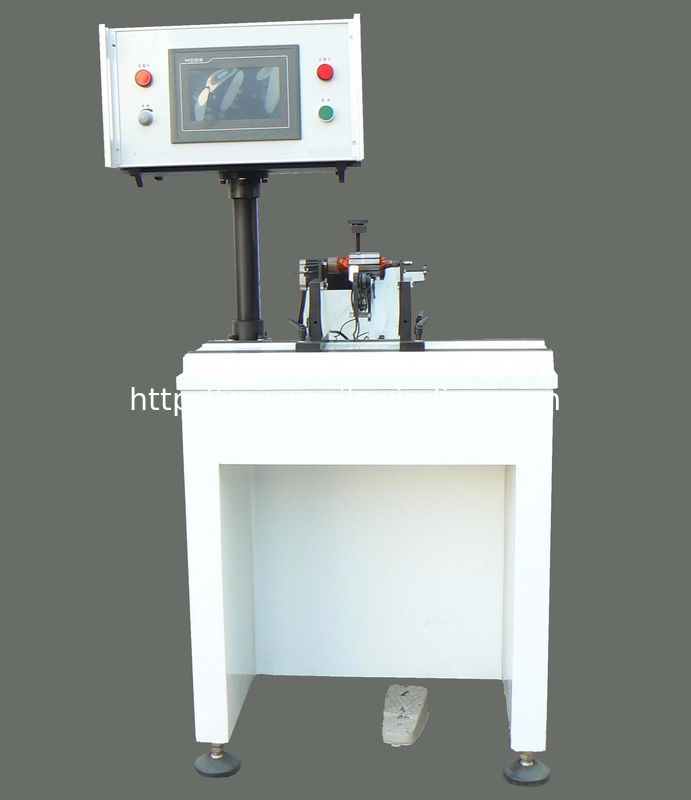

Armature Dynamic Balancing Adding Weight

Machine measure armature’s imbalance automatically,display the imbalance of each side on touch screen,

Stop at adding weight point (left) automatically, finish adding manually, change to the next adding weight point (right),

finish adding manually, test again, and complete balancing adjustment. Take out well-balanced armature,



Machine’s technical parameter:

1. Balancing rotation speed: 900~5000r/min (resolution: 10 turns)

2. Imbalancing value:0.3g.mm/kg

3. Weight of workpiece: 0.1-1.6kg

4. OD of workpiece: ≤∮200mm

5. Shaft O.D of workpiece: ∮2.17-∮25mm

6. Lamination of workpiece: 10—200mm

7. Driving mode: belt





Advantage:

1.No need to mark in armature (such as reflective sheet, black mark and so on)

2. Imbalance point positioning automatically

3. Low operation skill requirement to staff

4. Reduce the complexity of the machine operation
