Automatic Commutator Turning Lathe Machine With Servo Device And Touch Screen

I'm Online Chat Now
We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

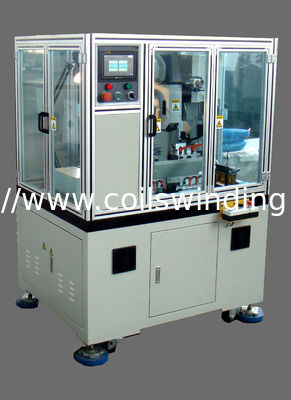

Automatic Commutator Turning Lathe Machine With Servo Device And Touch Screen

Automatic Commutator Turning Lathe Machine With Servo Device And Touch Screen
Automatic Commutator Turning Lathe Machine With Servo Device And Touch Screen Automatic Commutator Turning Lathe Machine With Servo Device And Touch Screen Automatic Commutator Turning Lathe Machine With Servo Device And Touch Screen

Large Image :  Automatic Commutator Turning Lathe Machine With Servo Device And Touch Screen Get Best Price

Product Details:
Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: stator winding, armature winding, welding
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Detailed Product Description

Automatic Commutator Turning Lathe Machine With Servo Device And Touch Screen Parameter data:

Commutator roundness: ≤0.005mm

(depends on user’s commutator material, armature shaft quality and bearing

position quality)

Roughness: ≤Ra 0.4

(depends on customer’s armature quality)

Armature OD: Ф20~Ф82mm

Shaft length: 32~250mm

Shaft OD: Ф3~Ф16mm

Commutator OD: Ф8~Ф40mm

Max. cutting volume: first cut—rough cutting Max 0.15mm(in diameter direction of commutator)

Speed regulation range: 0~60Hz

Z direction cutter feeding speed: settable on touch screen, stepless adjustable

Z direction cutter returning speed: set on program

X direction cutter feeding speed: settable on touch screen, stepless adjustable

X direction cutter returning speed: set on program

Z direction cutting length: settable on touch screen, Max. could set 4times different cutting length(Max 30mm)

Z direction travelling: Max 50mm

Production efficiency: whole cycle≤12sec/pc(twice cutting)

Air pressure: 4~6kg/cm2

Fixture: diamond V shape journal

Total power: 2.2KW

Machine power: 50/60Hz    AC230V±10%(single phase)

Burring removing machine power: 50/60Hz    AC230V±10%(single phase)

Vacuum cleaner power: 50/60Hz    AC380V±10%(three phase)

Weight: about 1,100Kg

Machine dimension: 1,100mm x 1100 mm x 1,830mm3

HS Code:84581100



Video:

http://vimeo.com/126871995



The machine is designed to finish turn the commutator brush track area of relatively small fractional horsepower motor armatures, starter armatures commutator,

Turning of the commutator brush track area is accomplished through the use of a diamond-tipped tool mounted onto a precision machine slide driven by a Japanese famous brand A.C. servo motor ,Turning lathe and milling the surface of commutator to let it polish and shining, commutator turning and burr remover can help the commutator work well with carbon brush.



Contact:Emily

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
