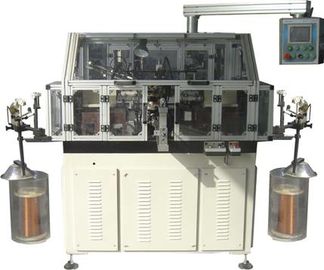

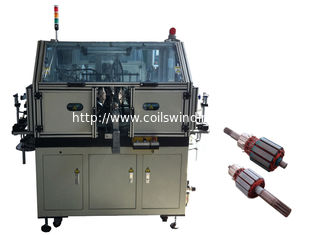

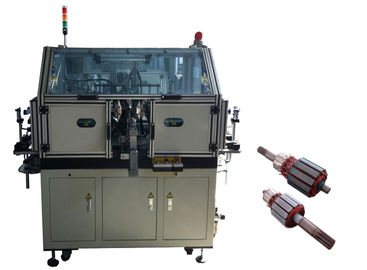

Hook Type Skew Armature Winding Machine Automatic Double Flyer Winder Lap Winding Machine

Hook Type Skew Armature Winding Machine Automatic Double Flyer Winder Lap Winding Machine Advantages:

around 23s/pc

with Japanese brand PLC control system and servo system,

this machine is the best sold in continuous 5 years!

Main parameter:

Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000

Application:

Wind the hook type armature for micro motor such as

series motor,house hold appliances motor power tools,mixer,blender,car motor etc.

Video:

https://vimeo.com/123798436

Photo:
