Automatic Riser Commutator Turning Lathe Machine Including Vacuum Cleaner And Enamel Remover
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Commutator: | Riser Type Commutator Armature Turning |
|---|

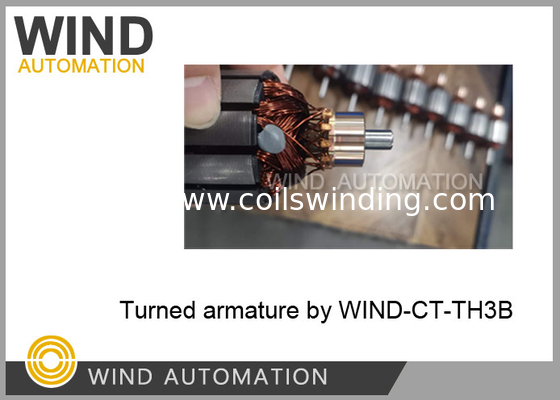

Machine turn the commutator brush track area of relatively small fractional horsepower motor armatures,
starter armatures commutator,
Turning of the commutator brush track area is accomplished through the use of a diamond-tipped tool mounted onto a precision machine slide driven by Delta A.C. servo motor ,Turning lathe and milling the surface of commutator to let it polish and shining, commutator turning and burr remover can help the commutator work well with carbon brush.
Parameter:
1. Roundness < 0.003mm
2. Surface roughness <Ra0.40
3. Armature OD 20~80mm
4. Shaft length:32~250mm (If longer need custom made)
5. Shaft Diameter: 2~18mm (can be custom made)
6. Commutator OD: 4.3~60mm
7. Stack OD: 20~90mm
8. Cutting amount:Rough cut Max0.20mm
9. RPM modulate: 0~60Hz
10. Cutter unit: 1um~0.5mm and speed adjustable
11. Cutting length:Max50mm

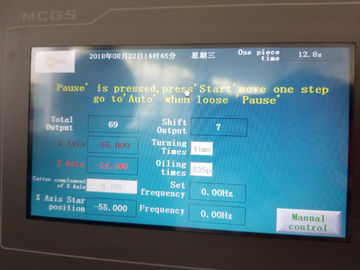

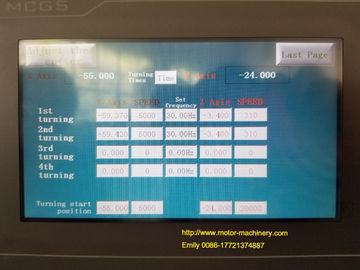

12. Cutting times: X axis can be setted up to 4times, Z axis 4times can be setted up to 4times
13. Air source: 5~7 MPa
14. Power source 220V 50/60Hz
15. Machine Power: 2KW
16. HS Code:84581100
Commutator turning riser surface lathing machine WIND-CT-TH4 from EmilyGao of coils winding supply on Vimeo.
