Detailed Product Description

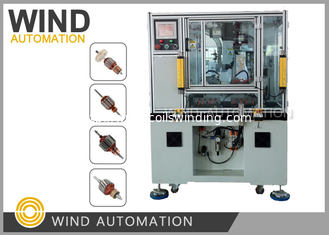

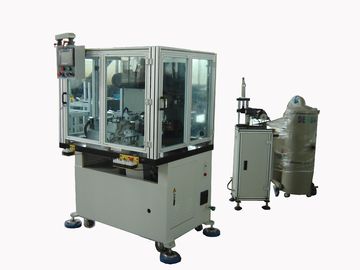

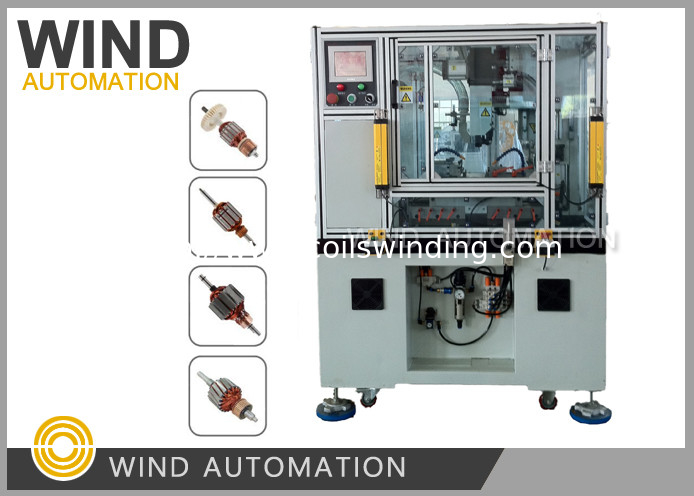

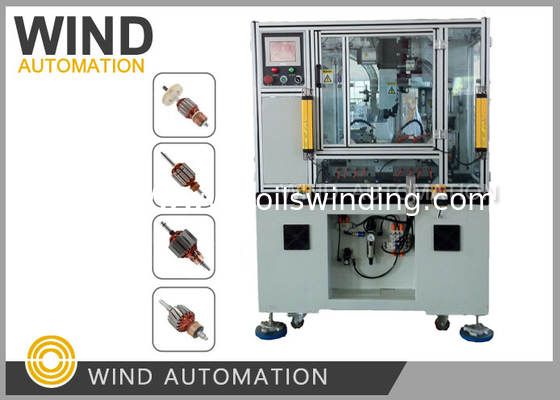

Commutator Turning: Precise Commutator Turning With Three Axis Servo Motor Control Cutter No Of Lathing Machine: With One Cutter Or Two Cutter (can Turn With Different Direction)
Two Cutter Commutator Turning Lathing Machine: Positive And Negative Thread For Commutator Surface Turning

Automatic Lathe commutator turning machine with three axis Application:

The machine is designed to precise turn the DC armature commutators with

high quality requirement and mass production



Japanese famous brand AC servo motor, three axis



Commutator roundness: ≤0.005mm

(depends on user’s commutator material, armature shaft quality and bearing position quality)

Roughness: ≤Ra 0.4

(depends on customer’s armature quality)

Armature OD: Ф20~Ф82mm

Shaft length: 32~250mm

Shaft OD: Ф3~Ф16mm

Commutator OD: Ф8~Ф40mm

Max. cutting volume: first cut—rough cutting Max 0.15mm(in diameter direction of commutator)

Speed regulation range: 0~60Hz

Z direction cutter feeding speed: settable on touch screen, stepless adjustable

Z direction cutter returning speed: set on program

X direction cutter feeding speed: settable on touch screen, stepless adjustable

X direction cutter returning speed: set on program

Z direction cutting length: settable on touch screen, Max. could set 4times different cutting length(Max 30mm)

Z direction travelling: Max 50mm

Production efficiency: whole cycle≤12sec/pc(twice cutting)

Air pressure: 4~6kg/cm2

Fixture: diamond V shape journal

Total power: 2.2KW

Machine power: 50/60Hz    AC230V±10%(single phase)

Burring removing machine power: 50/60Hz    AC230V±10%(single phase)

Vacuum cleaner power: 50/60Hz    AC380V±10%(three phase)

Weight: about 1,100Kg

Machine dimension: 1,100mm x 1100 mm x 1,830mm3

HS Code:84581100



Turning lathe and milling the surface of commutator to let it polish and shining,

commutator turning and burr remover can help the commutator work well with carbon brush.
