DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

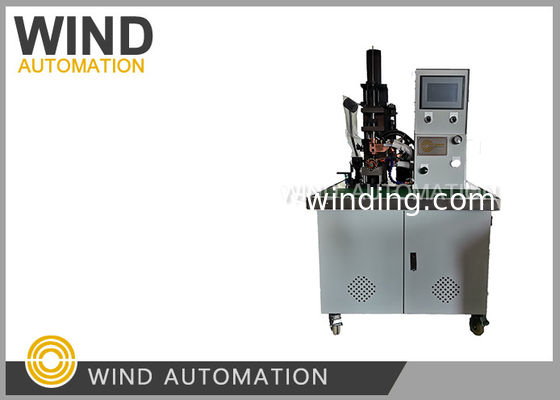

DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank

China DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank supplier
DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank supplier DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank supplier DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank supplier DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank supplier

Large Image :  DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank

Product Details:

Place of Origin: Commutator welding Machine China supplier
Brand Name: Wind Automation
Certification: Commutator spot welding machine with AC power supply
Model Number: WIND-DC-CW003 Welding device commutator hot staking machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Delivery Time: 45 working days
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description
DC Power Supply: High Frequency 15KHz Constant DC Power Supply Fusing Wire Size: Commutator Spot Welding Fusing Soldering Hot Staking Machine Weld 0.08mm~1.2mm
Welding Cooling Device: With A Separate Water Cooling Device Adjustment Easy: The Welding Operation And Setting Is Easy For Operator
Welding Big Wire Diameter Range: From 0.01mm To 1.20mm For Types Of Armatures Welding Quality Related Factors: Fusing Time, Welding Current, Pressure, Contacting Resistance

Commutator spot welding machine conductor hot staking Fusing for thin or big wire High frequency inverter weld and hot stacking commutator with small big wire thin and big wire, with cooling water device (act as a conditioner ), Easy for the operator who like the machine type most.

WIND-DC-CW003 with high frequency 15K Hz DC power supply for high and consistent quality with refrigeration constant temperature water tank, The commutator fusing penetration is perfect,the instantaneous current is big enough for the machine to fusing decisively with high efficiency,



For high standard usage with big output and commutator with widely covering thick wire, thin wire gauge 0.01mm~1.20mm



Fusing machine Parameter:

Wire diameter: 0.01~1.2mm

Armature OD: 20~100mm

Armature stack height:10~100mm

Commutator OD:8~70mm

Airsource:5~7KG/cm2

Welding power: 10~30KW

3phase AC 380V 50~60Hz

Weight: about 350KGS

Fusing power supply: Wind Automation self developed high frequency 15KHz, 500~5000A

Control system: Japan Mitsubishi PLC

Indexing control: Japan Mitubishi servo positioning system

7'' Touch screen



https://vimeo.com/208283651

https://youtu.be/uqzBaAwySFs



Question and Answer:

Question1.

When up and down adjustment is being made on your machine, does it adjust height of the ground same time as the height of welding tip?

Answer:

'Welding tip Fusing head up and down adjustment' is taken when the commutator OD size is changed,

Other parts don't move,

DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank

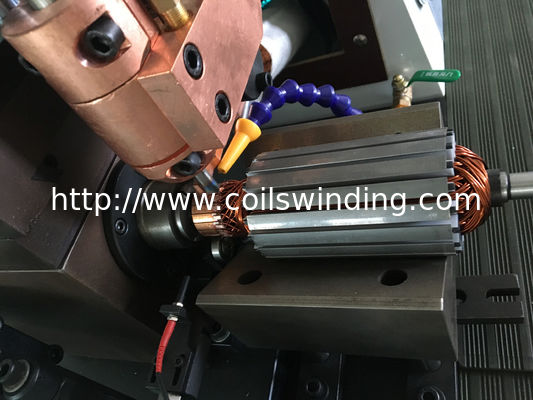

You can test the welding result, for some motor welding expert they can see the welding appearance place is constant for each commutator and slot connection position.



Cooling system: Constant temperature water tank especially for fusing









DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank

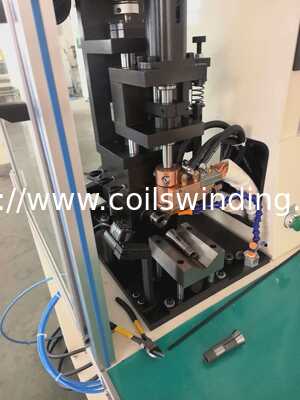

Commutator fusing machine adjustment when armatue changed

DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank



Commutator fusing hot staking machine adjustment



DC power armature commutator spot welding fusing soldering hot staking machine with cooling tank
