Stator coil single side lacing winding binding machine for pump compressor induction motor

China Stator coil single side lacing winding binding machine for pump compressor induction motor supplier
Stator coil single side lacing winding binding machine for pump compressor induction motor supplier Stator coil single side lacing winding binding machine for pump compressor induction motor supplier Stator coil single side lacing winding binding machine for pump compressor induction motor supplier Stator coil single side lacing winding binding machine for pump compressor induction motor supplier

Large Image :  Stator coil single side lacing winding binding machine for pump compressor induction motor

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Model Number: WIND-100-CL Stator assembly

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Payment Terms: TT
Supply Ability: stator coils lacing machine
Contact Now
Detailed Product Description
Stator Coil Lacing Machine: Lace The Stator Winding Side By Side Stator Lacing Application: BLDC Winding, Pump Compressor Induction Motor Coil Winding Binding
Coil Binding In Motor Manufacturingprocess: Slot Isolation,winding, Insertion, Forming,lacing Binding,testing

Stator coil lacing machine single side WIND-100-CL lace the coil and a process of Stator assembly

Parameter:
Thickness of stator lamination: 10mm-100mm
Min stator ID: Φ 35mm

Max coil height: 40mm
Max outer diameter of stator: Φ 160mm
Lacing speed: around 0.7s per slot
Power supply Input: 220V/50Hz,60Hz
Air pressure: 0.5 to 0.8MPa
Dimension: 1000mm × 600mm × 1150mm
Weight: ≈ 600kg

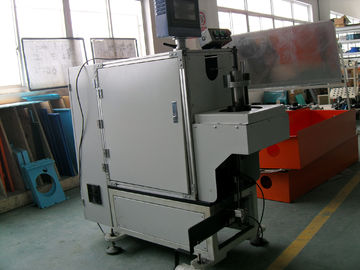

Stator single side coil lacing machine

Stator coil single side lacing winding binding machine for pump compressor induction motor

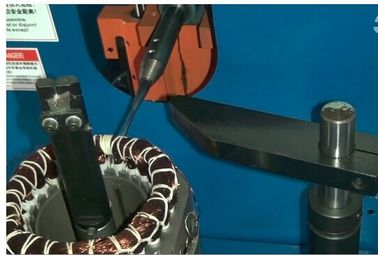

Single side stator coil lacing machine with indexing,hooking, spindels are three servo device

Stator coil single side lacing winding binding machine for pump compressor induction motor



Stator coil single side lacing coils binding machine for pump compressor induction motor

https://vimeo.com/127221008



Stator lacing is the process of tightly securing the field coil ends of an electric motor stator with a stitched cord,motor stator braiding. Lacing is typically used on long-life-expectancy or high-efficiency motors such as some induction motor where the cost of failure is high. Generally, low-cost “throwaway” motors are not laced. There are several reasons for lacing motor stators:
• The lacing holds the thermal protector, coil ends, and leads in the proper position.
• Lacing extends a motor’s life by preventing the wires in the coils from vibrating and causing fatigue failure during operation.

Lacing may be used to hold the coils in position and provide loops to hang the stator from a conveyor during the dip-and-bake varnishing operation.
The most obvious reason for lacing a stator automatically by machine is increased productivity. The lacing machine can lace more stators per hour than a person doing it manually, and usually at a substantially lower cost. The lacing machine also provides improved lacing quality and consistency over long time periods.
Another important advantage of machine lacing is the avoidance of carpal tunnel syndrome, a debilitating hand and wrist injury caused by repetitive strenuous handwork.
Several different styles of lacing machines are generally available to the motor manufacturer. The simplest machines lace one end of the stator at a time, and are referred to as single-end lacers. Others have two needles and lace both ends of the stator at the same time, and are known as double-end lacers.
Lacing machines may be constructed so the stator is vertical and the lacing needle is horizontal, or with the stator horizontal and the lacing needle vertical.
Most lacing machines index the stator about its axis during the lacing cycle, but a few machines have been designed to clamp the stator and rotate a lacing head with the needle around the stator.
Some machines use a closed needle with an eye, like a sewing machine, but the vast majority use an open needle, similar to a crochet hook, to form the stitch. In general, the open-hook needle produces a “diamond” stitch, with diagonal coverage of the coils, whereas the closed-eye needle produces more of a radial stitch.
There is also a wide variety of lacing cords (insulation thread) available. These cords may be made from fibers such as cotton, polyester, nylon, or other synthetics, and may be formed
