Motorcycle Magneto Engine Generator Stator winding machine Coil winder WIND-MW-4

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Motorcycle Magneto Engine Generator Stator winding machine Coil winder WIND-MW-4

China Motorcycle Magneto Engine  Generator Stator winding machine Coil winder WIND-MW-4 supplier
Motorcycle Magneto Engine  Generator Stator winding machine Coil winder WIND-MW-4 supplier Motorcycle Magneto Engine  Generator Stator winding machine Coil winder WIND-MW-4 supplier Motorcycle Magneto Engine  Generator Stator winding machine Coil winder WIND-MW-4 supplier

Large Image :  Motorcycle Magneto Engine Generator Stator winding machine Coil winder WIND-MW-4

Product Details:

Place of Origin: Chinese machine for producing electric motor stator
Brand Name: Wind Automation
Model Number: WIND-MW-4 four station winding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Contact Now
Detailed Product Description
Stator Winding Machine: Motorcycle Magneto Engine Generator Stator Winding Machine Coil Winder: Magneto Polarity Motor Stator
Magneto Engine Generator Stator Winding: Outside Stator, Outrunner Stator, Trainer Stator Four Station Winder: Automatic Synchronization

Motorcycle Magneto Engine Generator Stator winding machine Coil winder

Magneto winding machine WIND-WM is designed to produce motorcycle magneto,

With PLC and touch screen panel, easy to operate,

Magneto polarity motor stator winding Machines with 2 station and 4stations for different yield



Stator winding machine application

Motorcycle Magneto Engine, Generator Stator,

Outside stator, Outrunner stator

Winding station  2 station or 4 station or different stator manufacturing yield
Winding machine control system Winding, indexing, arraying are all Mitsubshi servo motor





Motorcycle Magneto Engine Generator Stator winding machine Coil winder WIND-MW-4 Parameter:

Power supply: 220V, 50HZ

Motor: Winding Mitsubshi 1000W servo motor

Arraying Mitsubshi 400W servo motor

Indexing Mitsubshi 400W servo motor

Wire diameter:0.45mm~1.25mm

Unit OD:70~250mm

Spindle: 0~1500rpm

Turns No.0-999

Air pressure: 0.5-0.7Mpa

Pneumatic: Airtac



Video:

Magneto stator winding flyer winding  WIND-MW

 https://vimeo.com/123586745

Four station Outrunner Brushless Motor stator motorcycle stator winding machine

https://vimeo.com/142343599

https://youtu.be/F34OMtg5zvg



Motorcycle Magneto Engine Generator Stator winding machine Coil winder WIND-WM



Question and answer:

Q:How many stators will this machine be capable of winding in an hour

Answer:

It take around 4 to 5 minutes to wind one stator by one winding head ,

So normally machine can wind around 12pcs to 15pcs stators in one hour,

It depends on the turns no. and the slots no.



You may also interest in Outside Stator testing machine WIND-DTS

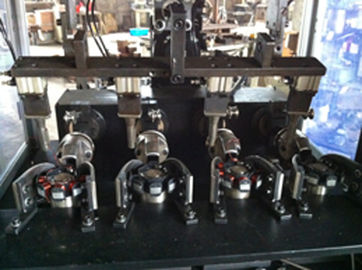

Four station magneto engine generator stator winding motorcyle stator winder

Motorcycle Magneto Engine  Generator Stator winding machine Coil winder WIND-MW-4

Outside stator winding outrunner stator coil winding

Motorcycle Magneto Engine  Generator Stator winding machine Coil winder WIND-MW-4



Magneto polarity motor stator winding



Motorcycle Magneto Engine  Generator Stator winding machine Coil winder WIND-MW-4
