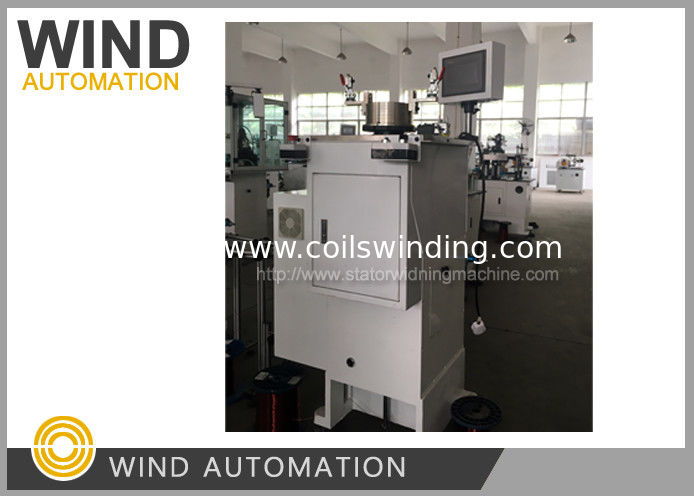

Big Motor Stator Needle Winding Machine China Low Cost Winder

Stack Height Below 200mm Stator Brushless Motor Needle Winding WIND-2B-TSM







(1) Application



Needle winding BLDC stators of big stack height big stroke coil winder





Big Motor Stator Needle Winding Machine China Low Cost Winder

(2) Competitive Advantages



Needle winding machine WIND-2B-TSM can handle almost all type of brushless DC motor especially



handle the big stack height stator below 200mm



which with high slot filling rate need arraying, tapping, place terminal







(3) Parameter





Item No.





Data





Wire diameter





0.08~1.0mm (AWG18~AWG39)





Stator ID





Above 19mm





Stator Core length





<200mm





Turns No.





0-99999





Winding operation





Stepping/Auto





Stator poles





6 poles,8poles, 9 poles,10 poles, 12 poles,14 poles,18 poles (Customized)





Air pressure





5~7kg/square centi-meter (0.5~0.7MPa)





Power





2KW, AC220V 50/60Hz





Weight





about 450kgs





Dimension





1600(L)x1100(W)x1400(H)mm







Below samples are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 15pcs stators







BLDC motor has a wide range of applications, such as automotive, tools, industrial industrial control,



automation, and aerospace. In general, BLDC can be divided into the following three main purposes:



Continuous load application



Variable load application



Positioning application





1. Continuous Load Application



This kind of application is mainly used in those fields that require a certain rotational speed but have low



requirements on the accuracy of rotational speed, such as applications such as fans, pumping machines,



and blower gas. Usually this type of application is relatively low cost and is mostly open-loop control.





2. Variable Load Application



This category mainly refers to applications where the motor speed needs to change within a certain



range. In such applications, there are higher requirements on the high speed characteristics and dynamic



response characteristics of the motor. Household washing machines, dryers and compressors are good



examples. In the automotive industry, oil pump control, electrical controllers, engine controls and



electronic tools are also good examples. There are also many applications in aviation, such as



centrifuges, pumps, robotic arms, gyroscopes, and so on. In this area, motor feedback devices are often



used to form semi-open loops and closed loops for control. This requires complex control algorithms,



increasing the complexity of the controller also increases the system cost.





3. Positioning Application



Most industrial control and automation applications fall into this category. In these applications energy



delivery, such as gears or conveyor belts, is often performed, so the system has special requirements on



the dynamic response and torque of the motor speed, and these applications may also need to change



the direction of the motor at any time. The motor may work in Constant speed, acceleration, reduction



phases, and possibly changes in load during these phases, so this places higher demands on the



controller. Usually this type of control uses closed-loop control, even with torque, speed, and position



loops. Three control loops. The photoelectric encoder and some synchronization equipment may be used



for speed measurement. Sometimes these sensors are used to measure the relative position and



sometimes to measure the absolute position. Many of these process controls, mechanical controls, and



transportation controls fall into this category.







In general, brushless motors have high speed/torque ratios, good dynamic characteristics, high efficiency,



long life, low noise, wide speed range, and ease of manufacturing compared to conventional brushed



motors and induction motors. Excellent characteristics. In particular, the power output per unit volume



allows it to be used in applications that are sensitive to size and weight. These excellent characteristics



make BLDC has a very wide range of applications in the field of industrial control, automotive industry,



aerospace and so on!
