16 Slots 24 Slot Ceiling Fan Stator Ventilator Winding Machine With Servo Motor WIND-CFW-4

16 Slots 24 Slot Ceiling Fan Stator Ventilator Winding Machine With Servo Motor WIND-CFW-4
16 Slots 24 Slot Ceiling Fan Stator Ventilator Winding Machine With Servo Motor WIND-CFW-4 16 Slots 24 Slot Ceiling Fan Stator Ventilator Winding Machine With Servo Motor WIND-CFW-4 16 Slots 24 Slot Ceiling Fan Stator Ventilator Winding Machine With Servo Motor WIND-CFW-4

Large Image :  16 Slots 24 Slot Ceiling Fan Stator Ventilator Winding Machine With Servo Motor WIND-CFW-4 Get Best Price

Product Details:
Place of Origin: Chinese machine for producing ceiling fan fan
Brand Name: Wind Automation
Certification: with 4 station servo motor drive system
Model Number: WIND-CFW-4 four station ceiling fan winder 16 slots 24 slot ceiling fan stator winding machine
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Delivery Time: ceiling fan winding
Contact Now
Detailed Product Description
Ceiling Fan Stator Winding Machine: Two Station Wind Outside Stator And Two Station Wind Inner Side Stator Ceiling Fan Stator Slots: 16 Slots, 24 Slots Are Most Used In Pakistan, India Market

16 slots 24 slot  Stator Four station ceiling fan winding machine WIND-CFW-4 Parameter:

Stator OD: 100-150mm
Stack height: 10-25mm
Slot No.: 12-48
Wire diameter: 0.18-0.5mm
Turns No.:0-9999
RPM: 0-2800
Power: 220V, 50Hz 2500W

Dimensions: 1220x1410x1700 mm



Ceiling fan winding machine Configuration:

PLC: DELTA DVP-40EH

Touching screen: DELTA

Servo motor: MITSUBISHI

Celing fan stator winding machines has 4 stations.

Each 2 stations is responsible for one layer winding of ceiling fan stator or separate single layer stator.



Stator winding machine Video:

www.youtube.com/watch?v=DAZ1jK8yF6g



Ceiling fan in winding process Photo:

16 Slots 24 Slot Ceiling Fan Stator Ventilator Winding Machine With Servo Motor WIND-CFW-4 0

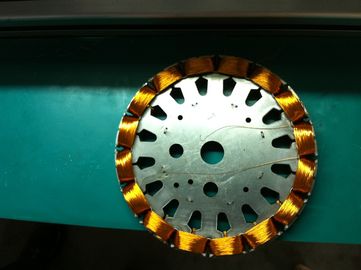

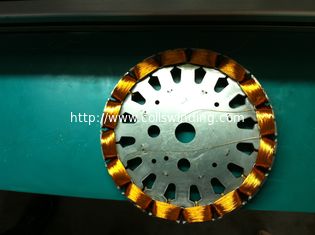

Wound ceiling fan stator

16 Slots 24 Slot Ceiling Fan Stator Ventilator Winding Machine With Servo Motor WIND-CFW-4 1



Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email:emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: www.motor-machinery.com;www.coilswinding.com
