BLDC stator E-bike winding muti coils winding Electric hub motor stator winding

China BLDC stator E-bike winding muti coils winding Electric hub motor stator winding supplier
BLDC stator E-bike winding muti coils winding Electric hub motor stator winding supplier BLDC stator E-bike winding muti coils winding Electric hub motor stator winding supplier BLDC stator E-bike winding muti coils winding Electric hub motor stator winding supplier

Large Image :  BLDC stator E-bike winding muti coils winding Electric hub motor stator winding

Product Details:

Place of Origin: ebike motor winding China supplier
Brand Name: Wind Automation
Model Number: WIND-HMW electrical bike motor winding machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T is prefered, L/C is acccpetable
Contact Now
Detailed Product Description

Electric hub motor winding machine WIND-HMW series Advantages:

Could save 6% to 15% copper wire, around  7 mintues per 2pcs



Parameter

Stator OD:40-265mm

Core length: 6-75mm

Slots Number: max 63

Max wires numbers winding at one time: 15 pieces

Time for stator winding: 54 slots, 11 pieces wire for one time winding, including loading/unloading, it takes 7 minutes for 2 pieces stator

Around 130pcs/ shift (8hours)



Configuration:

PLC: DELTA

Winding servo motor: MITSUBISHI

Indexing servo motor: MITSUBISHI

Wire arraying servo motor: MITSUBISHI

HMI: DELTA

Buttons: SCHNEIDER



Electric hub motor stator winding BLDC E-bile winding muti coils winding

machine wheel motor winding Video:

http://www.vimeo.com/123941149

https://vimeo.com/116029373

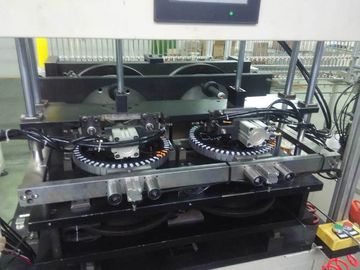

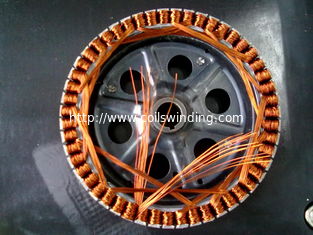

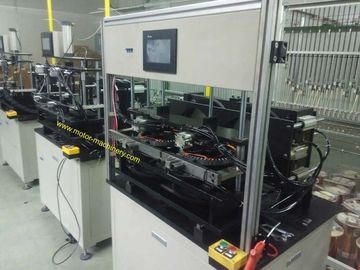

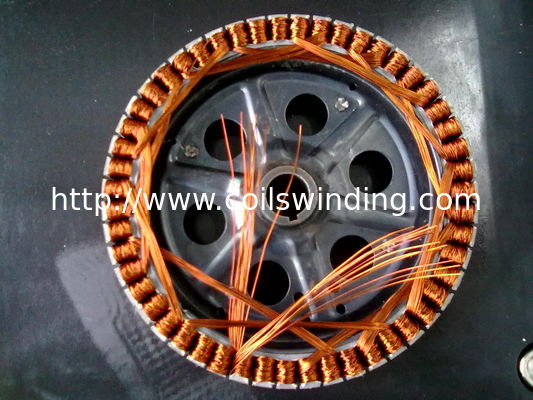

Photos:

BLDC stator E-bike winding muti coils winding Electric hub motor stator winding



BLDC stator E-bike winding muti coils winding Electric hub motor stator winding
