Home ProductsStator Winding machine

Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding

China Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding supplier
Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding supplier Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding supplier

Large Image :  Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding

Product Details:

Place of Origin: Induction motor manufacturing machines from China Supplier
Brand Name: Wind Automation
Model Number: WIND-100-SI Paper inserting, slot cell inserter

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Delivery Time: 30 days
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description
Stator Slot Paper Inserting Machine: Insert Slot Cell To Pump Compressor Induction Motor Before Winding Slot Cell Inserter: Stepper Motor Form,cut And Insert Paper To Induction Motor Slot
Motor Slot Insulation: Pump, Washing Machine,compressor Motor Stator Insulation

Pump compressor induction motor Slot cell inserter slot insulation inserting machine  WIND-100-SI Insert insulation paper polyester to stator's slot to insulate the stator stack and winding.

Alta eficiencia, tecnología avanzada, estable performance.Help a reducir costes mientras mantienen la alta calidad

Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding Video:vimeo.com/125464084

Motor making machines under production WIND-90-CWI https://vimeo.com/165526470



Alternator stator paper inserting machine
Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding
Insulated  generator stator by paper inserting machine
Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding

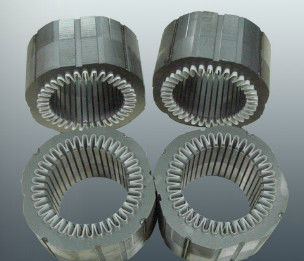

Insulated stator by Slot cell inserter

Pump compressor induction motor Slot cell inserter slot insulation inserting machine before stator winding

Laminated thickness of stator (Lamina espessura): 10mm-60mm

Max outer diameter of stator: Φ 160mm

Diameter of stator: Φ 40mm- Φ 80mm

Height of edge folded: 2.5mm-4mm

Max insulation paper's thickness: 0.35mm

Feeding length: 12mm-45mm

Tack time: 0.5-0.7s/slot

Input: 380V/50Hz

Power: 0.75KW

Machine productivity: around 1500pcs/8hours

Dimension: 1150mm × 1000mm × 1500mm

Weight: ≈ 400kg



The electric motor insulation class defines what kind of material is being used according to temperature operation. Standard motors are manufactured according to Isolation B.



The insulaiton materials are mainly used as a slot liner,slot closure,phase and turn-to-turn insulation in low or medium voltage electrical motors.Besides it is also used as interlayer insulation in transformers and other electrical appliances.

Electrical Insulation - Wiring, Sleeving & other Electrical Sheilding Products. These products are used in electrical applications to insulate high voltage current from surrounding areas. These products are typically known for dielectric strength, arc resistance, thermal performance and insulating properties. Common applications include dry and oil-filled transformers, switch gears, relays, wire wrap, welding apparatus, electrical fixtures, commercial & residential electrical, lighting systems and more. These products are known for their ability to insulate electrical current, withstand mositure and corrosion, and resist arc and flame. Many of these materials can serve as practical and safe insulators for low to moderate voltages (hundreds, or even thousands of volts).
