Muti wires E-bike in wheel Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol

China Muti wires E-bike in wheel  Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol supplier
Muti wires E-bike in wheel  Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol supplier Muti wires E-bike in wheel  Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol supplier Muti wires E-bike in wheel  Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol supplier Muti wires E-bike in wheel  Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol supplier Muti wires E-bike in wheel  Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol supplier Muti wires E-bike in wheel  Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol supplier

Large Image :  Muti wires E-bike in wheel Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol

Product Details:

Place of Origin: Winding machine supplier China
Brand Name: Wind Automation
Certification: BLDC E-bike winding muti coils winding
Model Number: WIND-HMW-2 Double station electrical bike motor winding machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: In USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T is prefered, L/C is acccpetable
Supply Ability: Electric hub motor stator winding
Contact Now
Detailed Product Description
Wires: Max 15pcs Parallel Wires 0.5mm Muticoil Winding Stack Heigh: 6mm To 75mm Of Stator Stack
Stator OD: 198mm,226mm,262mm After Sales: Engineer Available

WIND-HMW-2 Double station E-bike PMDC wheel motor winding Brushless hub motor stator winder muti coils winding machine wind the 15pcs parallel wires up to 0.51mm,  with 6,8,10,12,14,15 parallel wires for different voltage motor such as 24,36,48,62V
Winder Advantages:
1. Fully automatic winding,indexing, winding parallel wires with efficiency
2. Winding device with tension fram can ensure parallel wires winding without twisting
3. Touch screen can be set for different types winding ways
4. Precise Tooling ensure the winding quality and can be changed easily for types stators

Main Configuration:
PLC: DELTA
Winding servo motor: MITSUBISHI
Indexing servo motor: MITSUBISHI
Wire arraying servo motor: MITSUBISHI
HMI: DELTA
Buttons: SCHNEIDER


Parameter:
Max Winding Speed:500RPM
Slots Number: max 63

Max slot filling factor:For the hub motor winding, 68% slot filling rate is the highest
Video:
http://www.vimeo.com/123941149

The machine working for this E-bike motor manfaucuring plant with prodution 90% percent pass
https://vimeo.com/143262581

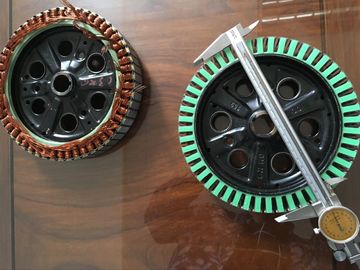

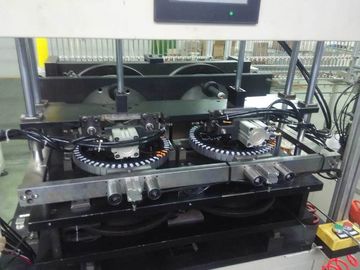

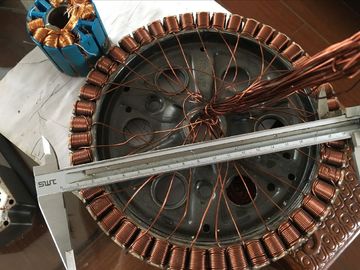

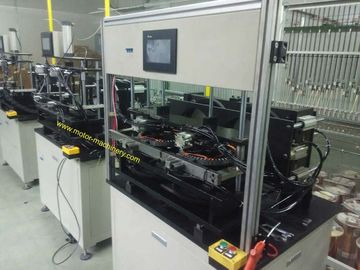

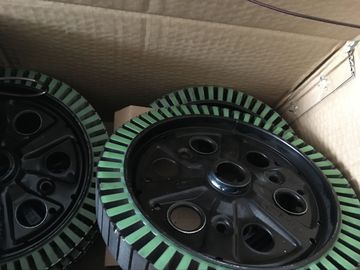

Photos:
Muti wires E-bike in wheel  Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol

Muti wires E-bike in wheel  Hub motor winding machine for Brushless motors 12 pol 24 pol 36 pol
Winder Ask and Answer:
1.How the motor wheel winding machine do the indexing: manually or automatically?
Automatically indexing by Mitsubishi servo motor
2. How the E-bike motor stator is fixed during winding process?
By pneumatic device
3. What range of diameters of copper wire can work your machine (minimum and maximum)?
What the muti coils winding machine had done is 0.51mm with 6,8,10,12,14,15 parallel wires
4. Which is the range of stacking lengths the winding machine can work?
Stator Stacking length 6 to 75mm
5. Is it possible to press and compact the wire copper during or after winding?
The winding heads protrude maximum 15mm from both sides of the stack.
The Hub motor winding machine machine WIND-HMW only winding, no function to press and compact,
and as machine wind compactly, the winding heads protrude maximum 15mm from both sides of the stack
can be assured
6. Does the machine any limitation in the dimension of the width of the open slot
Yes, 2mm is absolutely OK to wind in our machine WIND-HWM
7. How many samples would you need to adjust the winding machine in your facilities?
Around 4pcs to 5pcs stator samples
8. What is the height of the machine on the work area of the operator?
Height 750mm
9. Have you manufactured any machine for a similar stator?
Yes, we had supplied 12pcs winding machine working in this E-bike motor manufacturer
10. How is the setting process to change the number of turns per coil?
Please set the number of turns parameter on touch screen
11. How is the stator fixed to the machine during the winding process? Is it possible to have different lengths
and different shapes of the motor wheel shaft
Stator is fixed on machine by penumatic device during winding,
If different shape of motor, toolings can be changed in 1hour
If only different stack lengths, adjustment is easy
