Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate

China Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate supplier
Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate supplier Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate supplier Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate supplier Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate supplier

Large Image :  Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate

Product Details:

Place of Origin: Chinese machine for producing electric Brushless motor
Brand Name: Wind Automation
Model Number: WIND-2-TSM BLDC stator tooth winding machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: WIND-2-TSM muti poles BLDC stator tooth winding machine
Contact Now
Detailed Product Description
Array Wire: Displacement Wires, Array Coils In Slot To Achieve High Slot Filling Rate BLDC Stator Winder: This Type Can Achieve Amost Every Type Of Stator
Tap Or No Tap: BLDC Stator With Or Without Tap Wire Size: Can Handle Big Wire Size Motor Up To 1.8mm (AWG13)

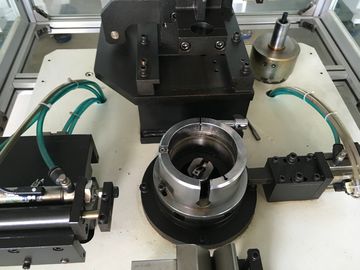

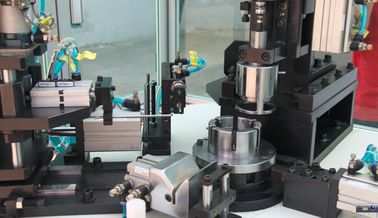

Tooth winding machine WIND-2-TSM produce Muti poles BLDC Stator winder needle winding for Stator with 6 poles, 8poles,9 poles, 10poles,12 poles, 14poles,18 poles (Tailor made,Customized) ,

Neelde winding machine automatic winding, arraying ,indexing and wire cutting,

Opearator load and unload stator manually.





Parameter:

Wire diameter:0.08 to 1.2mm

Stator ID: above 19mm

Stack height: 7 to 90mm

Air pressure:5~7kg/square centi-meter

Power:AC380V 50/60Hz

Weight: about 500kgs

Dimension: 1800(L)x1150(W)x1600(H)mm



Advantages:

Delta PLC,servo system,DOP-BOSS GOT and rich experience in 6,8,9,12 tooth can ensure the good performance of winding machine



Parts list of WIND-2-TSM
  Name Spec. Q'ty
Parts
1 Spindle belt HTD8M-776 1pc
2 Arraying belt HTD8M-624 1pc
3 Indexing Belt 224XL 1pc
4 Fuse RT18-32 2A 2pcs
5 Fuse RT18-32 10A 2pcs
6 Magnetic switch AL-11RL-02 1pc
8 Ceramic wheel ∮4 2pcs

Tools:
1 Allen wrench 8pcs 1Set
2 Open end wrench 13-16mm 1pc
3 Word screwdriver 1.5 inches 1pc
4 Phillips screwdriver 4inches 1pc
5 Wrench 8pcs 1Set
6 Tool box   1pc
7 Diagonal pliers   1pc


Custom part
1 Nozzle   1pc

Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate

Muti poles BLDC Stator winder needle winding WIND-2-TSM Array coils to achieve high slot filling rate





You may also interested in other products flyer winding machine for types of BLDC stator

with easy tooling change and good applicability, mainly for small output production



Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-17721374887

Website: http://www.motor-machinery.com; http://www.statorwindingmachine.com

Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Tel: 86-21-58992293

Send your inquiry directly to us (0 / 3000)
