Electromagnetic coil stator winding machine 2 pole universal motor stator winder China

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Electromagnetic coil stator winding machine 2 pole universal motor stator winder China

China Electromagnetic coil stator winding machine 2 pole universal motor stator winder China supplier
Electromagnetic coil stator winding machine 2 pole universal motor stator winder China supplier Electromagnetic coil stator winding machine 2 pole universal motor stator winder China supplier Electromagnetic coil stator winding machine 2 pole universal motor stator winder China supplier

Large Image :  Electromagnetic coil stator winding machine 2 pole universal motor stator winder China

Product Details:

Place of Origin: stator winding machine China supplier
Brand Name: Wind Automation
Certification: Winding machine worked for Juicer Mixer Grinder motor production in India
Model Number: Two station winding machine

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: 25000USD
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T, L/C,
Contact Now
Detailed Product Description
Stator Winding Machine: 2 Poles Universal Motor Stator Winder Electromagnetic Coil: Field Coil Stator Winding

Electromagnetic coil stator winding machine 2 pole universal motor stator winder WIND-SW-2 China



Parameters:

Wire range: 0.15 to 1.3mm

Stack length: 20 to 60mm

Pole: 2

Turns range: 0 to 99999

Stator O.D: 50 to 150mm

Main spindle speed: 0 to 450RPM

Air pressure: 5-7kg/cm2

Voltage:415v/3, 50/60HZ

Motor power: 4.5KW

Weight: 1.2T

Dimension: 1050*2300*1750mm

NCM No / HS Code: 8479811000

Stator winding Process:

Manually load the tooling, clamp the wire, automatically finish the winding

Demo video: https://vimeo.com/135349536

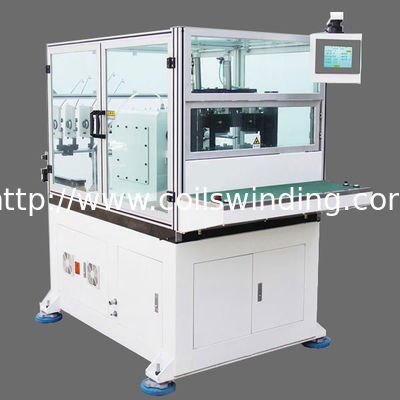

Electromagnetic coil stator winding machine 2 pole universal motor stator winder China

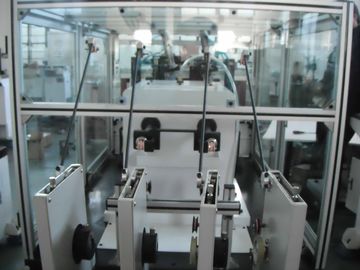

Stator winding machine with winder tooling on machine



Electromagnetic coil stator winding machine 2 pole universal motor stator winder China

Two station two poles Stator winder tensioner at back side of winding

Electromagnetic coil stator winding machine 2 pole universal motor stator winder China

Wound stator by Electromagnetic coil stator winding machine
