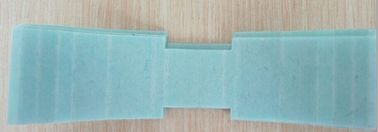

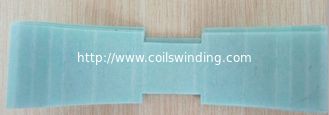

Electric Insulation paper form and cut for two pole excited DC motor stator slot cell

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Electric Insulation paper form and cut for two pole excited DC motor stator slot cell

China Electric Insulation paper form and cut for two pole excited DC motor stator slot cell supplier
Electric Insulation paper form and cut for two pole excited DC motor stator slot cell supplier Electric Insulation paper form and cut for two pole excited DC motor stator slot cell supplier Electric Insulation paper form and cut for two pole excited DC motor stator slot cell supplier

Large Image :  Electric Insulation paper form and cut for two pole excited DC motor stator slot cell

Product Details:

Place of Origin: Chinese motor production equipment
Brand Name: stator slot insulaiton
Certification: Servo and penumatic
Model Number: Slot cell insulation
Detailed Product Description

Form and cut the insulation paper (video) for universal motor stator, cell insulation such as mixer,grinder,power tools,



Main technical data:

Armature O.D: Ф20-55mm

Length of lamination: Max 60mm

Parameter:

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Speed regulation range: 0~60Hz

Length of insulation paper: 15-60mm adjustable

Thickness of insulation paper: 0.1 mm ~ 0.5 mm

Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.

Insulation paper shape: V or edge-folding V

Efficiency: 0.5sec - 0.8sec/per slot, loading



Working video:https://www.youtube.com/watch?v=5PL1h7nWriU
