Detailed Product Description
Armature Insulation: Armature Impregnation Trickling , Roll And Dip Armature Related Size: Armature Shaft Length, Armature OD,stack Height
Machine Length: Is Related To Armature Size,curing Time And Output Requirement

Armature trackling impregnation machine automatic varnish heat treatment oven Process:

machine will move automatically,
run the process loading, preheating, air cooling , trickling  (2 points to do trickling on armature by its both end at winding), flat flowing , colloidizing & postcuring, air cooling.
Simple varnish collection trays do the remaining varnish collecting.
Armature trackling machine related factors

The armature OD, shaft length,

varnish curing temperature(163~177℃) time(30minutes)

Output requirment(100~150 armatures in 8 hours)

Weight

The small roll-dip (trickling) machine

WIND-ZDG152-60

 is able to handle armature below 5KGS

WIND-ZDG152-60

152 is the chain pitch, 60 is the rough station no. each side,

The machine price is some part related to the working station no.




Parameter:

Working position: 200*2

Position pitch: 63

Heating time: ≤45 min

Tunnel working temperature: 0—160 ℃

Pitch time: 0-10min adjustable

Power consumption: 36 KW

Dimension: 6.4*1.6*2.1

Weight:Around 4.2 Ton

Production capability: 1200pcs/8 hours



Photos:

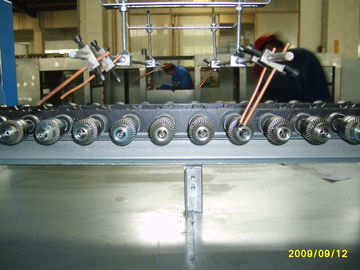

Armature trickle impregnation machine automatic varnish insulation heat treatment oven WIND-ZDG

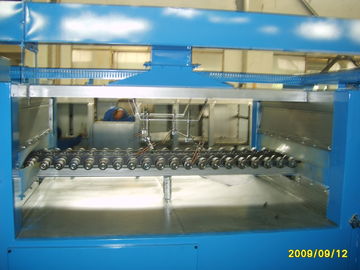

Armature trickle impregnation machine automatic varnish insulation heat treatment oven WIND-ZDG

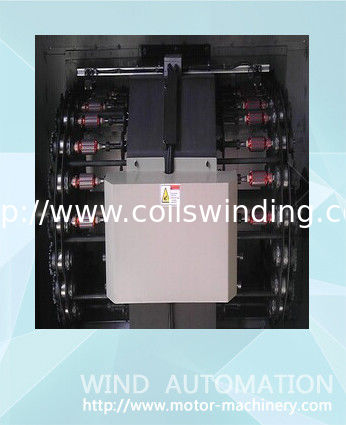

Armature trickle impregnation machine automatic varnish insulation heat treatment oven WIND-ZDG



Armature trackling machine Video:

http://vimeo.com/126074388



The motor coil must be impregnated with insulating varnish and its adjacent parts, Let the conductor wire, slot insulation isolation parts whole compacted and immerged with insulating resin coating become strong overall density.



The following purpose can be achieved through the insulation treatment.



1. To improve the moisture resistance of motor insulation



Any insulating material is more or less absorbing moisture in moist air. Such as Electrotechnical insulation material paper DMD,PMP,Polyester, the moisture in the air is easily penetrated into the insulation material along the capillary, thus the performance of the insulating material decreases significantly. The insulation treatment will make the surface of the windings and coils form a smooth, pinless film or insulation seal layer, which will greatly reduce the invasion of moisture and improve the moistureproof performance of the motor.



2. Improve the heat resistance of motor insulation



Motor insulation materials in an insulating impregnating varnish before the material after heating the internal decomposition of gas water molecules of low molecular substances, accompanied by oxidation, changes in material properties such as mechanical strength, moisture resistance, reduce the decline of brittle materials, have electrical properties such as insulation resistance and breakdown voltage decreased, this phenomenon known as the aging of insulation materials, insulation insulation contact area but after the treatment of material and air is greatly reduced, the rate of oxidation is greatly reduced, in the same service life, the use of the temperature of the motor can be improved. Therefore, the heat resistance of the motor insulation is improved.



3. Improve the thermal conductivity of the motor



The electrical insulation layer of air gap large, while the thermal conductivity of the air gap is low, the air gap is filled with dipping paint, varnish and perfusion ratio due to thermal conductivity of air gap, so the electrical winding motor and a corresponding increase in the conduction of heat, will greatly reduce the motor temperature rise. The experimental data show that the temperature rise can be reduced by 10-20%.



4. Improve electrical and mechanical properties of motor insulation



The motor winding coil and the insulation treatment, winding and Core Bond into a solid whole film will void windings and the notch is full, the insulating layer is formed in a certain thickness of winding end of the head, there is no gap inside the water is not easy to enter, so the insulation resistance and breakdown voltage are improved, and at the same time winding core non relative movement, have sufficient strength to resist the external vibration and stress, and bear the motor assembly process of mechanical impact, thus avoiding the mechanical action of damage.



The motor windings impregnated after winding insulation system and the core to form a solid whole reduces the effects of mechanical vibration and electromagnetic force vibration generated by the motor during operation, the reinforcement effect on the machine, avoid wire between the wire and the core or tank wall due to vibration, friction and damage the insulation displacement loose structure. The organic insulation material inside the motor not only improves heat resistance and electrical performance, but also improves the mechanical strength of the insulation material itself after impregnation. Because the insulating material is heated, the material will change, releasing gas, water and carbonaceous materials, lose flexibility, but after impregnation, pyrolysis, under heat hydrolysis process can greatly retard mechanical flexibility material to maintain long-term, while insulating paint formed by the paint film has certain elasticity and adhesion in the hot state, the material between the binding force of strengthening, forming a strong overall, greatly enhance the strength of the system.



5. Improve chemical corrosion resistance



The motor through the impregnation treatment, to prevent all kinds of insulation materials and solvent around the motor and direct contact with corrosive chemicals, which can improve the stability of chemical substances of the motor due to the insulating encapsulation, shut off from the world body contact, improve the winding stability, selecting suitable varnish resin materials can make the winding insulation with anti mildew, anti oil, anti corona, flame retardant performance.
