Armature slot cell insulation paper inserting machine for starter armture manufacturing double servo China supplier

China Armature slot cell insulation paper inserting machine for starter armture manufacturing double servo China supplier supplier
Armature slot cell insulation paper inserting machine for starter armture manufacturing double servo China supplier supplier Armature slot cell insulation paper inserting machine for starter armture manufacturing double servo China supplier supplier Armature slot cell insulation paper inserting machine for starter armture manufacturing double servo China supplier supplier

Large Image :  Armature slot cell insulation paper inserting machine for starter armture manufacturing double servo China supplier

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Model Number: Starter armatue production

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Polywood case
Delivery Time: 45 working days
Payment Terms: T/T, L/C,
Supply Ability: 200 sets per year
Contact Now
Detailed Product Description
Slot Cell Inserter: Indexing Device Servo Motor, Feeding Device Servo Motor Paper Type: Starting Armatures With S Shape, U Shape, O Shape
Armature Stack Height: Usually 100mm Changing Tooling: Easy To Change Tooling

Armature slot cell insulation paper inserting machine for starter armture manufacturing production machine

Automatic heating, shaping, cutting off and insertion,automatic indexing the insulation paper

Configuration:

Servo motor: Delta or Mitsubishi

PLC: Mitsubishi

Pneumatic system :Airtac

Electronic unit:Schneider



Parameter:

Insulation material thickness: 0.18~0.2mm

Armature stack height: Max 100mm

Power Supply: 220V±10% 50Hz

Air source Pressure: 0.5~0.7Mpa

Heating temperater: 70~100℃

Weight: Around 700KGS

Dimension: 1200*650*1500mm

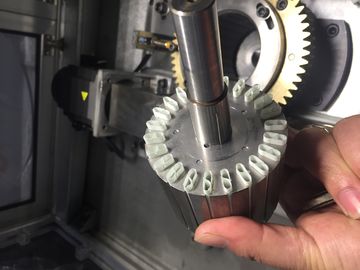

It automatic forming shaping the s shape cell and insert to starter armature,
There are similar machines for different shape such as В-,S-,C-,O-,V-shaped


Video:

vimeo.com/106465846



Photo:

       Armature slot cell insulation paper inserting machine for starter armture manufacturing double servo China supplier

Two station slot cell insulator

     Armature slot cell insulation paper inserting machine for starter armture manufacturing double servo China supplier

Armature slot cell insulation paper inserting machine for starter armture manufacturing double servo China supplier



You may also interest in  starter armature winding
