Starter motor slot liner insulation paper inserting machine

China Starter motor slot liner insulation paper inserting machine supplier

Large Image :  Starter motor slot liner insulation paper inserting machine

Product Details:

Place of Origin: Chinese machine for producing electric motor armature
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: motor slot liner insulation WIND-SZ

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Delivery Time: 25 working days
Contact Now
Detailed Product Description
Starter Motor Armature Slot Insulation: Double Station Paper Inserting Machine Slot Liner: Insert Paper With 1s/slot Speed

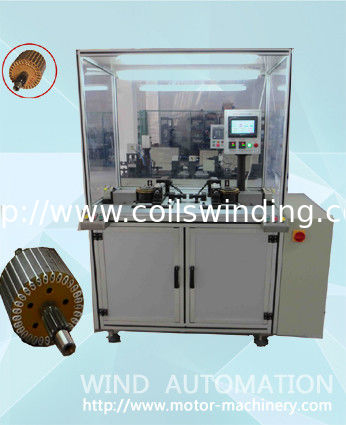

WIND-SZ-2 starter armature slot insulation paper inserting machine



Advantages:

Paper automatic heating, shaping, cutting off and insertion,automatic indexing

With double station insert the paper efficiently!



around 1second per slot with high efficiency,



Technical Parameter:

Insulation material thickness: 0.18~0.2mm

Armature stack height: Max 100mm

Power Supply: 220V±10%  50Hz

Air source Pressure: 0.5~0.7Mpa

Heating temperater: 70~100℃

Weight: Around 700KGS

Dimension: 1200*650*1500mm



Double station working video:

https://vimeo.com/134252920

https://vimeo.com/106465846

https://www.youtube.com/watch?v=maa3LXaZJPA



Photo in plant:

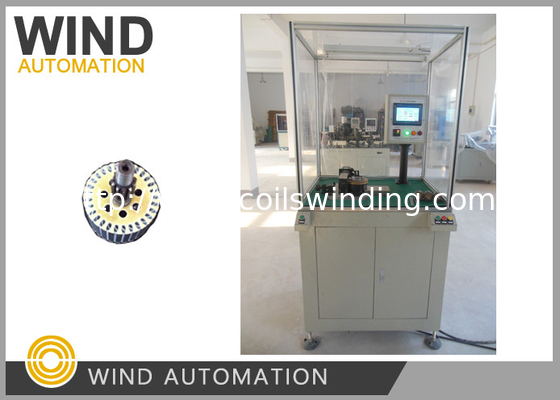

Starter armature slot insulating machine ready for shipping

Starter motor slot liner insulation paper inserting machine





Armature Paper Insertion Machine For Starter Armature Shapes S Slots Insulation WIND-SZ-1







(1) Application



This paper inserting machine WIND-SZ-1 automatic heating, shaping, cutting off paper and



insertion,automatic indexing



The armature slot insulation forming and insertion machine is designed for the automatic forming of S,O



shaped slot insulation and its insertion into the starter armature slots.



Raw material is a roll of insulation paper with the appropriate width.



The paper inserting machine carry the paper, guiding,heating, forming, feeding and cutting-off



mechanisms







(2) Competitive Advantages



Efficiency 1 second per slot



Save labor cost comparing to paper forming and manual inserting production process



The edge folding length and insulation paper length can be adjusted







(3) Parameter



Insulation material thickness: 0.18~0.2mm



Armature stack height: Max 100mm



Power Supply: 220V±10% 50Hz



Air source Pressure: 0.5~0.7Mpa



Heating temperater: 70~100℃



Weight: Around 700KGS



Dimension: 1200*650*1500mm







Please click below photo to view video



Starter motor slot liner insulation paper inserting machine











Contact:Shanghai Wind Automation Equipment Co.,Ltd

Email: emily@motor-machinery.com

Skype: motor.machinery

Mobile: +86-18067425780

Website: http://www.motor-machinery.com; http://www.coilswinding.com
