Slotted comm Armature winding machine for slot type commutator motor de ranhura

China Slotted comm Armature winding machine for slot type commutator motor de ranhura supplier
Slotted comm Armature winding machine for slot type commutator motor de ranhura supplier Slotted comm Armature winding machine for slot type commutator motor de ranhura supplier Slotted comm Armature winding machine for slot type commutator motor de ranhura supplier Slotted comm Armature winding machine for slot type commutator motor de ranhura supplier

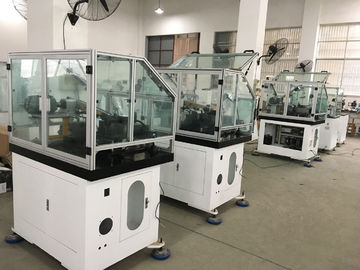

Large Image :  Slotted comm Armature winding machine for slot type commutator motor de ranhura

Product Details:

Place of Origin: Chinese machine for producing electric motor slot armature
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: WIND-ST-TD2B armature winding, shaft insertion, stator winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Delivery Time: 25 working days
Supply Ability: For Power Tool Motor Rotor
Contact Now
Detailed Product Description
Wire Diameter: 0.2mm To 1.2mm , Max 1.35 (AWG16) Slotted Comm Armature Winder: No. 1 Most Stable In China Supplier For Slotted Type Commutator Armature Winder

Slotted Type Commutator Armature Winding Machine  WIND-ST-TD2B



Lap winding with double flyer wire gauge range Usually 0.20~1.2mm, Max machine handled 1.35mm (about AWG16)
Armature commutator type Slotted comm riser type not hook type
Automatic or semi automatic You only need to load and unload armature, other actions such as hooking, winding, indexing and cutting are wound by machine automatcially

Slotted comm Armature winding machine for slot type commutator motor de ranhura

Slotte type armature rotor winder

Slotted comm Armature winding machine for slot type commutator motor de ranhura

Automatic armature winder

Slotted comm Armature winding machine for slot type commutator motor de ranhura



Automatic rotor winding Advantages:

1. Slot type armature with thin, thick wire machine can handle,

   Machine had good feedback of winding a 0.25mm wire diameter armature

2. Have good adaption for slot type commutator with groove,

   No need to work with special designated slot machine

3. Got good feedback in wide application from customers

4. 98% yield rate above assured when the slot commutator quality is good



Technical parameter:

Wire diameter: 0.20~1.2mm

Armature diameter range:20~90mm

Armature stack length:10~130mm

Commutator diameter:8~60mm

Armature slot number:Odd, oven slot

Turns no.:0~99999

Flier fork speed:0~2000RPM

Indexing speed:0~2500RPM

Total power:4.5KW

Operation method:Step, Auto, JOG

Power source:AC380V 50/60Hz

Air source:5~7KG/cm2

Weight:850KGS

Dimension:1530mm x 1280 mm x 1650mm



Main configuration:

PLC: MITSUBISHI

Servo control system: PANSONIC or MITSUBISHI

Touch screen: MCGS7062KS

Pneumatic system: AIRTAC

Main electrical components:Korea and Japan

Tension :Hysteresis tension

Linear guide way: HIWIN

Safety door and feeding device:  Pneumatic



Video:

https://youtu.be/B3qWEeS4l2M

 https://vimeo.com/148309838
