Automatic power tool double flyer winder lap winding machine

China Automatic power tool double flyer winder lap winding machine supplier

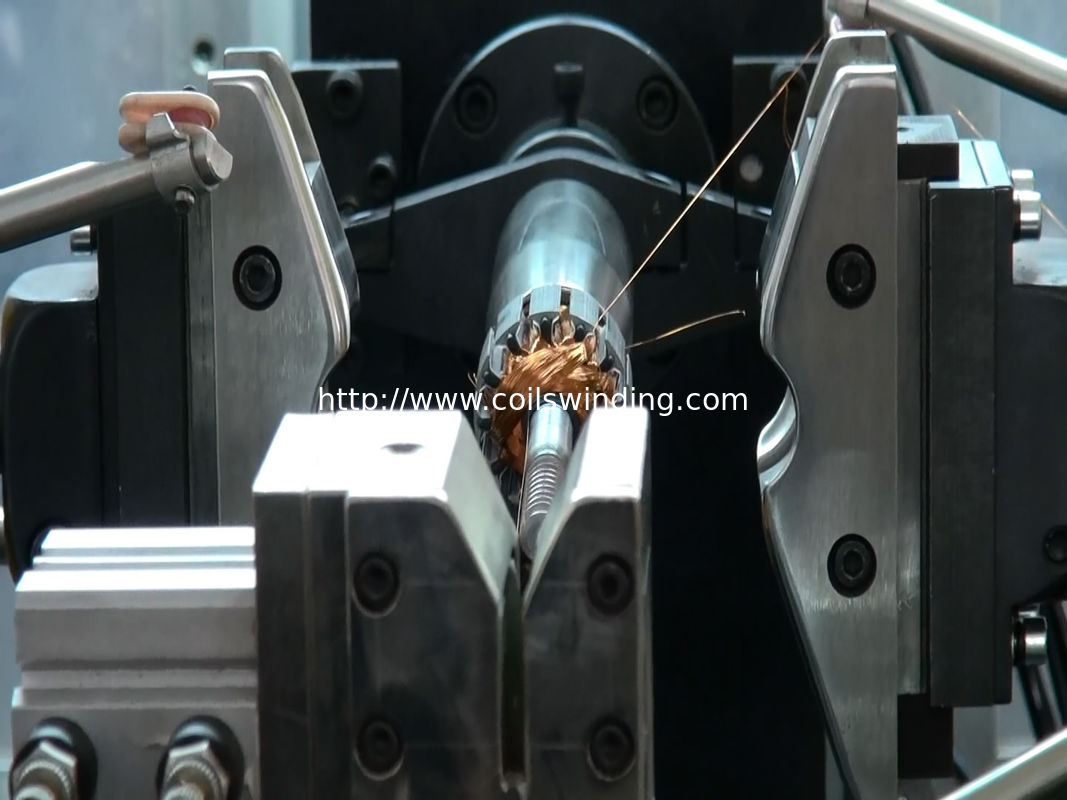

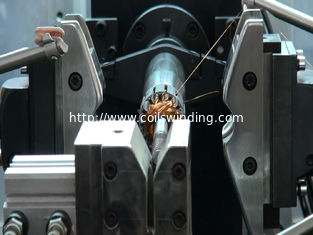

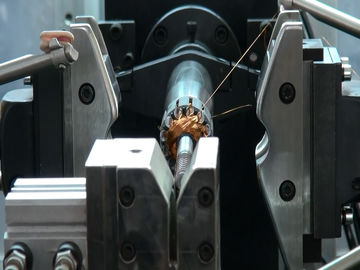

Large Image :  Automatic power tool double flyer winder lap winding machine

Product Details:

Place of Origin: Chinese machine Japanese quality
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Contact Now
Detailed Product Description

Automatic power tool double flyer winder lap winding machine

Advantages:

With Japanese brand PLC control system and servo system,

For types armature production such as power tool



Main parameter:

Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000



Application:

Wind the wire of armature for micro motor such as series motor,

house hold appliances motor power tools,mixer,blender,car motor etc.
