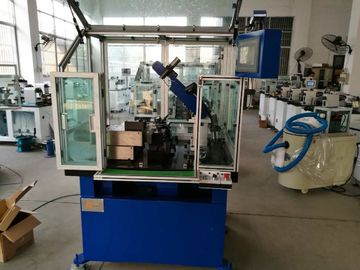

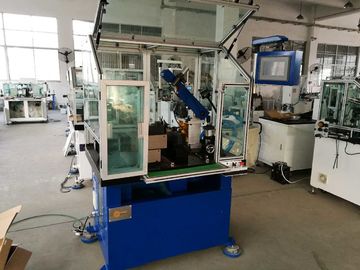

Commutator face roundness turning machine armature com fine Lathe with 2 axis servo motor WIND-CT-TH4

China Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4 supplier
Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4 supplier Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4 supplier Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4 supplier Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4 supplier Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4 supplier Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4 supplier

Large Image :  Commutator face roundness turning machine armature com fine Lathe with 2 axis servo motor WIND-CT-TH4

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: Commutator turning WIND-CT-TH4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Delivery Time: 45 working days for commutator turning lathing machine
Contact Now
Detailed Product Description
3 Axis Commutator Face Turning: 2 Axis With Delta Servo Motor Ensure The Fine Turning Result Lathe Operation: Easy To Set Cutter Position And Simple For Operator
Armature Commutator Turning: Commutator OD And Raisor OD

After welding process, Armature commutator turning machine WIND-CT-TH4 precise lathe grind commutator withX,Z axis and servo system , face turning for wide range size of armature commutator surface lathing

Commutator turning place  After welding, can turn the commutator OD and riser OD of automotive armature
Cutter number One cutter
Servo axis  device  With two servo axis,


X axis control the length of turning left right horizontal  position

Z Axis control the depth of lathing in vertical position



Commutator surface turning lathing machine, also turning the commutator raisor

https://youtu.be/6IjY1ey-qr0





Armature Commutator surface precise turning https://youtu.be/X9jOA-qUNX8

Armature commutator lathing on armature automatic production line https://youtu.be/whFKJWcw0lg




Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4



Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4



Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4



Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4



Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4



Technical Data

1. Roundness < 0.003mm

2. Surface roughness

3. Armature OD 20~80mm

4. Shaft length:32~250mm (If longer need custom made)

5. Shaft Diameter: 2~18mm (can be custom made)

6. Commutator OD: 4.3~60mm

7. Stack OD: 20~110mm

8. Cutting amount:Rough cut Max0.20mm

9. RPM modulate: 0~60Hz

10. Cutter unit: 1um~0.5mm and speed adjustable

11. Cutting length:Max50mm

12. Cutting times: X axis can be setted up to 4times, Z axis 4times can be setted up to 4times

13. Air source: 5~7 MPa

14. Power source 220V 50/60Hz

15. Machine Power: 2.5kw



Configuration of the commutator turning machine

1.Delta PLC

2.Delta Servo system

3.Delta inverter

4. ABB 3Phase AC motor

5.Japan belt and coupling

6.Diamond V holder and Diamond cutter



HS Code:84581100



Question and Answer:

Is it possible to process both type of armatures using one machine, or it requires different tooling?

--- Yes, you can use one machine and it requires two different kind of V shape Diamond fixture





Does the turning machine have a memory with pre-set programmes for different armatures?

--- No, when you change to a new type armature, you need to adjust the cutter position,



The lathe turning machine is designed to finish turn the commutator brush track area of

relatively small fractional horsepower motor armatures, starter armatures commutator,



Turning of the commutator brush track area is accomplished through the use of a diamond-tipped tool

mounted onto a precision machine slide driven by famous brand Delta servo motor ,

Turning and milling the surface of commutator to let it polish and shining,



The purpose of turning

1. Runout, good concentricity and consistency, consistency

2. Surface finish (Micrometer, the belt speed and cutter speed shall work well)

Commutator face roundness turning machine armature  com fine Lathe with 2 axis servo motor WIND-CT-TH4
