PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine

China PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine supplier
PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine supplier PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine supplier PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine supplier PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine supplier PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine supplier PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine supplier

Large Image :  PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Custom made machine for many developed and developing countries
Model Number: WIND-STR stator winding, armature winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Contact Now
Detailed Product Description

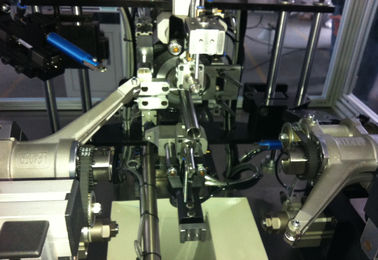

Flyer Winder Winding Station: One Station Double Flyer With Better Balancing Of Armature Experience: Engineering Team Have Rich Experience In PMDC Motor Armature Manufacturing Since The Year 1997
PMDC Armture: Mixer Grinder Power Tool Vacuum Clearner Universal Armature

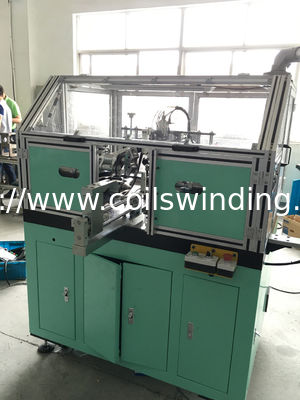

PMDC motor machine Mixer grinder armature winding fully automatic dobule flyer winder machine

Main parameter:

Wire diameter range: 0.16~1.2 mm (We also have special made machine for thin wire armature)
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000



Video:

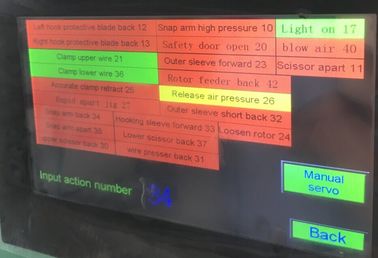

Wind the coils of armature for micro motor such as series motor, power tools,mixer,blender,car automobile armature motor,bus accessories armature etc. With Japanese brand PLC control system and servo system

PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine

Fully automatic armature winding commissioning

PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine

Armature winder for PMDC motor mixer grinder winding

PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine

Armature winding China supplier





PMDC motor arature manufacturing Mixer grinder armature winding fully automatic dobule flyer winder machine

Armature winding ready for shipping
