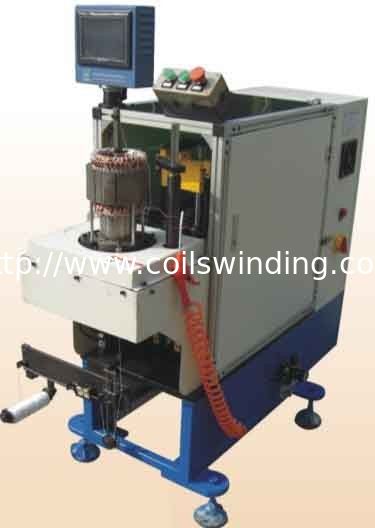

Stator Winding Binding Machine Lace The Stator End Coils Side By Side
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Stator lacing machines to manufacture electric motors, to lace the stator end coils, one side by side
Stator coils lacing is the process of tightly securing the field coil ends of an electric motor stator with a stitched cord,
motor stator braiding. Lacing is typically used on long-life-expectancy or high-efficiency motors such as some induction motor where the cost of failure is high. Generally, low-cost “throwaway” motors are not laced.
Parameter:
Thickness of stator lamination: 10mm-100mm
Min stator ID: Φ 35mm
Max coil height: 40mm
Max outer diameter of stator: Φ 160mm
Lacing speed: around 0.7s per slot
Power supply Input: 220V/50Hz,60Hz
Air pressure: 0.5 to 0.8MPa
Dimension: 1000mm × 600mm × 1150mm
Weight: ≈ 600kg
Engineer show the coils lacing process to customer in our plant
