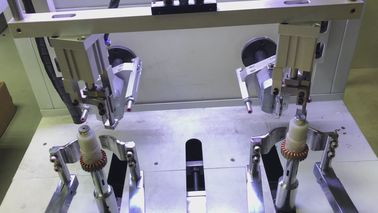

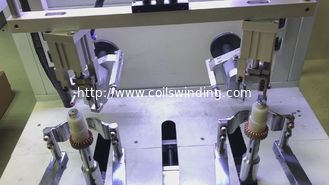

Flyer Winding Machine For Pump Drone BLDC Motors Armature Outrunner Stator WIND-HMW-205D
Stator Winding Machine Application:
Stator flyer winding machine winding outrunner BLDC motors stators such as
Model stator, Fan stator, Ceiling fan stator,
Toy motor,Skateboard Wheel Motor Stator , Big size outside stator,
Drone stator,Airplane ,Aircraft Helicopter Motor Outrunner Stator
RC model aeroplane motors
Flying Models Stator Winding Machine Advantages:
CNC Flyer winding faster than needle winding
|Smart machine easy to change tooling||
A machine that do custom winding schemes to which you can test different kv values in your prototypes and low volume production runs.
A winding machine like the WIND-HMW-205D could save a lot of time from ordering custom winding scheme from a manufacturer.
|Outrunner motors stator size||

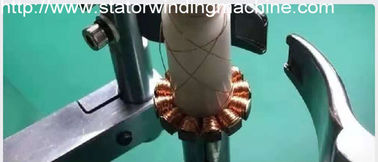

From 2slots to 24slots, other slots are custom made, the smallest outside diameter stator winding machine can wind is 12mm (0.48'' ) , 12slots, showed in below wound stator photo
|Single wire or multi wires||
Can wind stators with one wire or parellel wires
|Muti wires handled||
30pcs wires with 15pcs tensioners
Brushless Motor Outrunner stator flyer winding machine Parameter:
Wire diameter: 0.10~0.60mm (AWG18 ~ AWG23)
Operation option: Auto
Automatic winding, automatic indexing, automatic winding arranging, automatic clamping and cutting
Stator slot no. : 2 to 24slots (other slots custom made)
Wire displacement: 60mm
Power suplly: AC220V 50/60Hz
Weight: about 350KGS
The purpose of these windings is to create a magnetic field when a current is run through them
There are several different types of winding machines, from simple manual feed machines to complex
computer-numeric-control (CNC) machines. Some of the more common uses for winding machines are coil
winding, rope winding, and continuous winding. Many industries use these devices,
including electronics,stator,rotor and armature of motor production and wire industries.
Below samples and drawing are needed for machine manufacturing and commissioning:
1. Stator stack 5pcs without winding
2. Wound stator 1pc
3. Copper wire 1 roll enough for winding 10pcs stators
4. Stator lamination drawing and winding drawing
Question and Answer:
There’s another armature, similar to this one but smaller and with a skew, is it possible to wind this type of
armatures with the machine you quoted us?
For the other one with skew, we need to check the sample or drawing to give conclusion,
Please send 3-5 stacks and wires to our address,
If possible, please send 1pcs wound sample of your mentioned skew armature for checking, too
Stator winder Trouble shooting
We’ve been operating the machine this week without any issue until today, the machine just stopped working, it turns on and everything but it just won’t start winding.

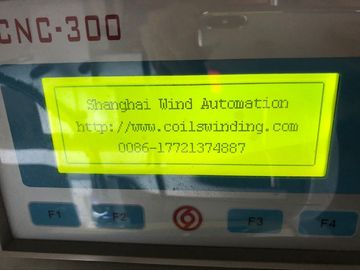

When we press the START button, an error appears on the screen IO1ERROR, or something similar.
Just to add more information, One of the days we were using the machine I think I got the same error code (IO1ERROR!, not sure if it is O letter or 0 number) or other error code, it turned out to be the air input, somebody unplugged it on the night shift. I only had to plug it again and we had no problems using it for the next few days until now.
I hope this helps solve our problem, it would be helpful if you have an error codes list.
Winding machine issue Solution:
