Polyester Film Mylar Insulation Paper Forming For Excited Motor Stator Slot Cell

China Polyester Film Mylar Insulation Paper Forming For Excited Motor Stator Slot Cell supplier
Polyester Film Mylar Insulation Paper Forming For Excited Motor Stator Slot Cell supplier Polyester Film Mylar Insulation Paper Forming For Excited Motor Stator Slot Cell supplier

Large Image :  Polyester Film Mylar Insulation Paper Forming For Excited Motor Stator Slot Cell

Product Details:

Place of Origin: Chinese plant motor manufacturing Slot insulation
Brand Name: Wind Automation
Certification: Excited motor production
Model Number: Stator slot paper production equipment

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Delivery Time: 45 working days
Payment Terms: T/T, L/C,
Detailed Product Description

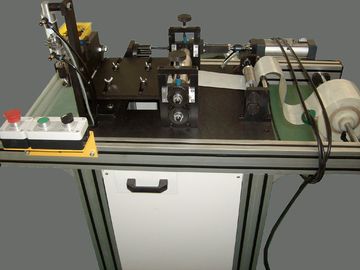

Form and cut the insulation paper for universal motor stator, cell insulation such as mixer,grinder,power tools,

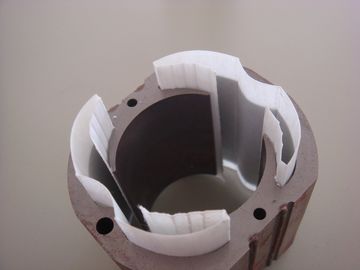

and then insert the formed paper to two pole stator as below, view the slot paper forming process https://vimeo.com/106468848

Polyester Film Mylar Insulation Paper Forming For Excited Motor Stator Slot Cell

Main technical data:

Armature O.D: Ф20-55mm

Length of lamination: Max 60mm

Parameter:

Shaft length: 32~250mm

Shaft O.D: Ф6~Ф20mm

Slot number: 8-24 slots

Commutator O.D: Ф16~Ф50mm

Speed regulation range: 0~60Hz

Length of insulation paper: 15-60mm adjustable

Thickness of insulation paper: 0.1 mm ~ 0.5 mm

Type of insulation material: DMD, DM, Polyester film(thickness 0.125mm), etc.

Insulation paper shape: V or edge-folding V

Efficiency: 0.5sec - 0.8sec/per slot, loading
