Armature Winder For Slotted Type Commutator Vacuum Cleaners Hammers Power Tool WIND-ST-TD2B Video
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Armature Winder: | Slotted Type Commutator Armature Manufacturing | Armature Manufacturing: | Vacuum Cleaner Hammers Power Tool Armatures Winder |
|---|---|---|---|
| Winder Flyers: | Dual Double Flyer Lap Winding Machine | Armature Commutator Type: | Riser Slotted Type Not Hook Type Commutator Colector |
Slotted type commutator armature winding machine WIND-ST-TD2B Advantages:
1. Slot type armature with thin, thick wire machine can bed handled by automatic winding machine,
Machine had good feedback of winding a 0.25mm wire diameter armature
2. Have good adaption for slot type commutator with groove,
No need to work with special designated slotting undercutting machine
3. Got good feedback in wide application from customers
4. 98% yield rate above assured when the slot commutator quality is good
5. Till now it is the best machine in China for winding slot type armature
Winding machine features
| Lap winding with double flyer wire gauge range | Usually 0.20~1.2mm, Max wire machine handled 1.35mm (about AWG16) |
| Armature commutator type | Slotted type riser type not hook type |
| Automatic or semi automatic | You only need to load and unload armature, other actions such as hooking, winding, indexing and cutting are wound by machine automatcially |
Video:
https://youtu.be/B3qWEeS4l2M
https://vimeo.com/148309838
Hammers power tool motor slotted type commutator armature automatic winder
Dual double flyer lap winding machine
Slotted type not hook type fully automatic armature winding machine
Winding and welding are the two most improtant process in building motors, WIND-ST-TD2B winding machine is mainly for automatical lap winding a slotted type commutator armature as below
Wound slotted commutator Straight stack armature and Skew lamiantion rotor by armature winder
Main data:
Wire diameter: 0.20~1.2mm
Armature diameter range:20~90mm
Armature stack length:10~130mm
Commutator diameter:8~60mm
Armature slot number:Odd, oven slot
Turns no.:0~99999
Flier fork speed:0~2000RPM
Indexing speed:0~2500RPM
Total power:4.5KW
Operation method:Step, Auto, JOG
Power source:AC380V 50/60Hz
Air source:5~7KG/cm2
Weight:850KGS
Dimension:1530mm x 1280 mm x 1650mm
Main configuration:
PLC: MITSUBISHI
Servo control system: MITSUBISHI

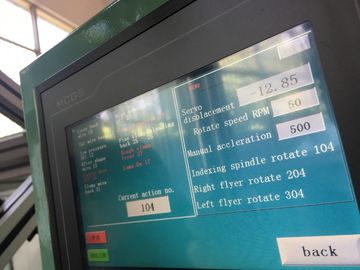

Touch screen: MCGS7062KS
Pneumatic system: AIRTAC
Main electrical components:Korea and Japan
Tension :Hysteresis tension
Linear guide way: HIWIN
Safety door and feeding device: Pneumatic
The purpose of these windings is to create a magnetic field when a current is run through them
There are several different types of winding machines, from simple manual feed machines to complex computer-numeric-control (CNC) machines. Some of the more common uses for winding machines are coil winding, rope winding, and continuous winding. Many industries use these devices, including textile, electronics,stator,rotor and armature of motor production and wire industries.
Contact: emily@motor-machinery.com
Skype: motor.machinery
Mobile: +86-18067425780
Website:http://www.motor-machinery.com; http://www.statorwindingmachine.com
Slotted type commutator armature automatic winding machine demo WIND-ST-TD2B from EmilyGao of coils winding supply on Vimeo.
