Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR

We are very happy with the machines!

—— Efrain.Alvarado

We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

Thank you so much!

—— Alain Vadrot

I think the segments look great, excellent layering

—— Paul

I'm Online Chat Now

Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR

China Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR supplier
Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR supplier Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR supplier Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR supplier Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR supplier Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR supplier Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR supplier

Large Image :  Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR

Product Details:

Place of Origin: Chinese machine for producing electric motor
Brand Name: Wind Automation
Certification: Wind the coils of armature for micro motor such as series motor, power tools,mixer,blender,car motor
Model Number: armature winding, Rotor winding,stator winding, welding

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD
Packaging Details: Polywood case
Detailed Product Description
Armature Winder: Automatic Two Flyer Lap Winding Machine Rotor Winder Application: Car Motor, Automotive Motor,Wiper Motor, Mixer Motor
Automatic Or Semi-auto: Fully Automatic With Hooking, Winding ,indexing, Fast Winder

Two flyer fully automatic winder lap winding machine for wiper mixer motor WIND-STR

Armature winding manufacturing requirement Armature lamination drawing, winding diagram
Armature winder application Car motor, automotive motor,Wiper motor, mixer motor
Armature commutator type Hook type armature, not slotted type



Main parameter:

Wire diameter range: 0.16~1.2 mm (We have special made machine for thin wire armature)
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000



Main Configuration:

Japan Mitsubishi FX3U PLC control

Japan Panasonic servo motor control system
5.7’’ colorful touch screen system
Airtec Cylinder from Taiwan
SMC Electromagnetical Valve from Taiwan
SMC Air source handling part from Taiwan
Aluminium Alloy cover, imported organic grass

Much stronger structure.

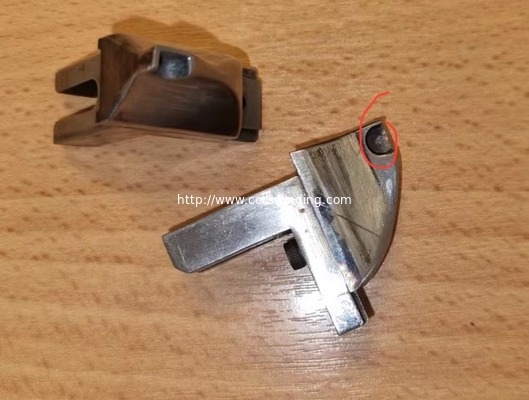

Stable, sway-proof fixture and wire protection system, tooling change time is around 5 minutes.
Cylinder automatically convey armature

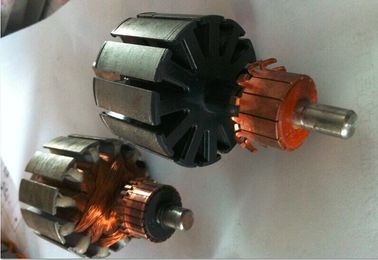

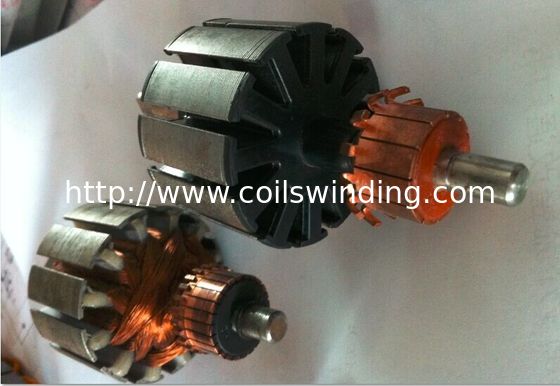

Wound armature Photo:

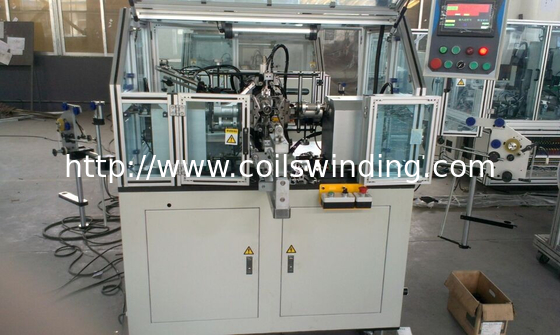

Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR

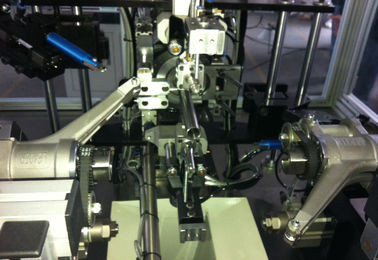

Armature winding machine

Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR

Aramture winder

Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR

Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR

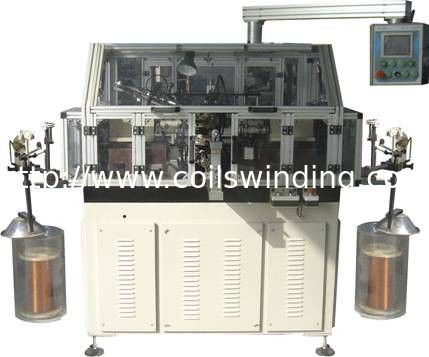

Armature winder for delivery

Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR

Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR
