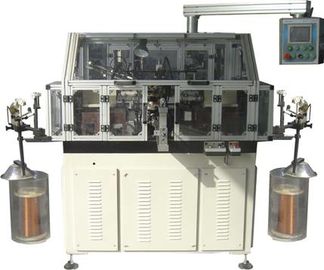

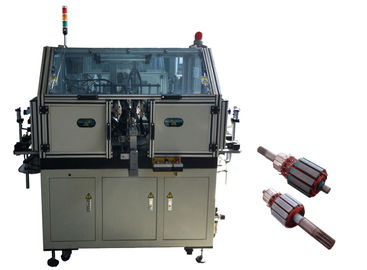

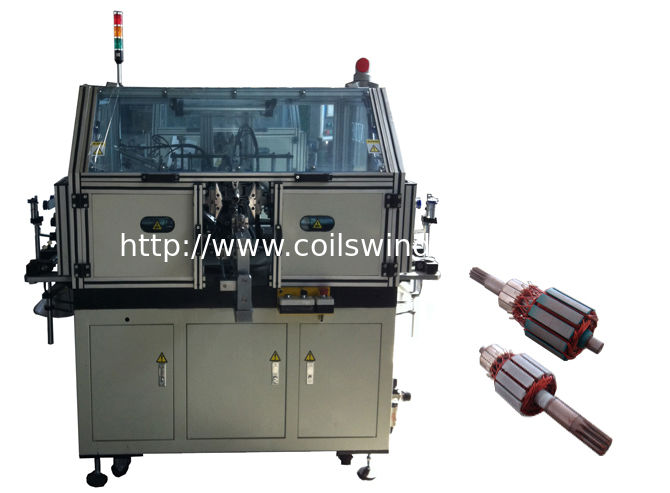

Armature Winder With Japanese Servo System Super Star Equipment

Armature Winder With Japanese Servo System Super Star Equipment

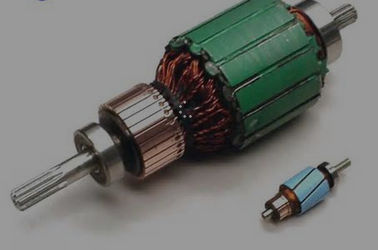

Wind the wire of armature for micro motor such as series motor,

house hold appliances motor power tools,mixer,blender, drill , grinder wiper,car motor etc

.

With Japanese brand PLC control system and servo system, this machine is the best sold in continuous 5 years!

https://vimeo.com/123798436  is the demo for the winding process, this machine is popular in many countries for the customers who produce commutator armature!

Main parameter:

Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1

Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm

HS code: 8479811000

You may also interest in Another semi-auto type for reparing types of armature available
